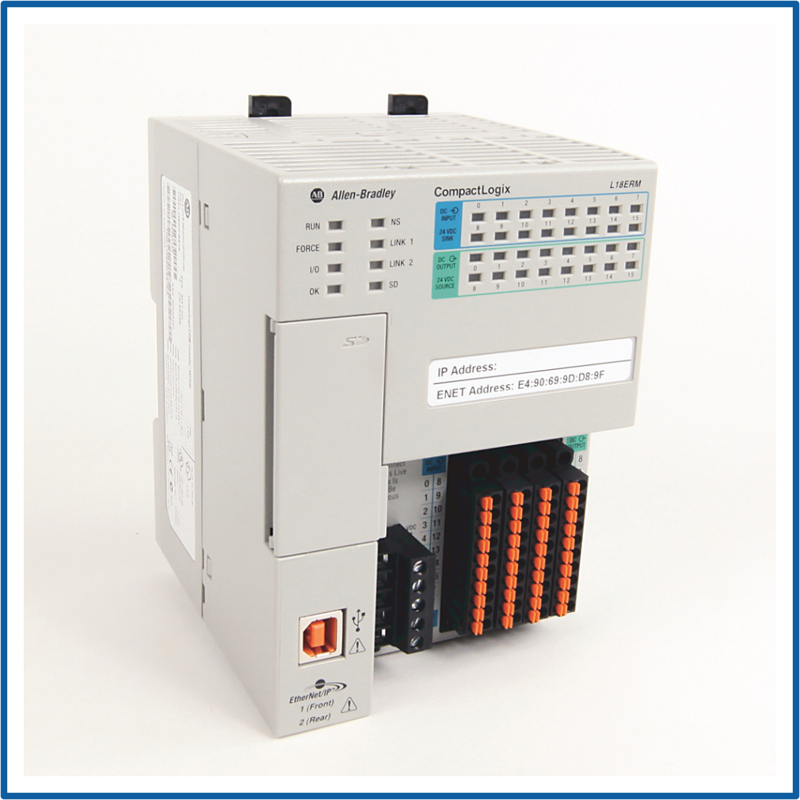

CompactLogix L18 512KB Ctlr-Motion, CC
SKU: 1769-L18ERM-BB1BK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
This controller includes 512KB of user memory, embedded digital I/O, and dual Ethernet/IP ports that support the Device Level Ring (DLR) topology.
It incorporates a 1GB SD card for non-volatile storage and provides integrated motion control for up to two axes, making it perfect for small devices that require precise motion coordination.
Memory: 512KB user memory with 1GB SD card provided.
Embedded I/O:
16 digital inputs (sinks).
16 digital outputs.
Motion Control: Supports up to two combined motion axes.
Communication:
Two Ethernet/IP ports (DLR compatible).
One USB programming port.
Expansion Support:
There are up to eight POINT I/O modules.
There are up to eight Ethernet/IP nodes.
Power source: 24V DC.
Mounting: DIN rail.
Buy currently uses Select Automation shop pricing and checkout.
Memory & Processing:
User Memory: 512KB.
Non-volatile Storage: 1GB SD card included (expandable to 2GB).
Controller Tasks:
Up to 32 tasks.
Each task can support up to 100 programs.
Embedded I/O:
Digital Inputs: 16 (sink type, 24V DC).
Digital Outputs: 16 (source type, 24V DC).
Motion Control:
Integrated Motion Axes: Supports up to 2 axes over Ethernet/IP.
Motion Profile Support: Coordinated motion control for servo drives.
Communication:
Ethernet/IP Ports: 2 (supporting Device Level Ring topology).
USB Port: 1 (for programming and diagnostics).
Supported Ethernet/IP Nodes: Up to 8.
Expansion & Compatibility:
I/O Expansion: Supports up to 8 POINT I/O modules (1734 series).
Programming Software: Studio 5000 Logix Designer.
Mounting: DIN rail.
Power & Environmental:
Power Supply: 24V DC.
Operating Temperature: –20°C to +65°C.
Certifications: UL, CE, C-TICK, KC.
