CompactLogix 750KB DI/O Controller

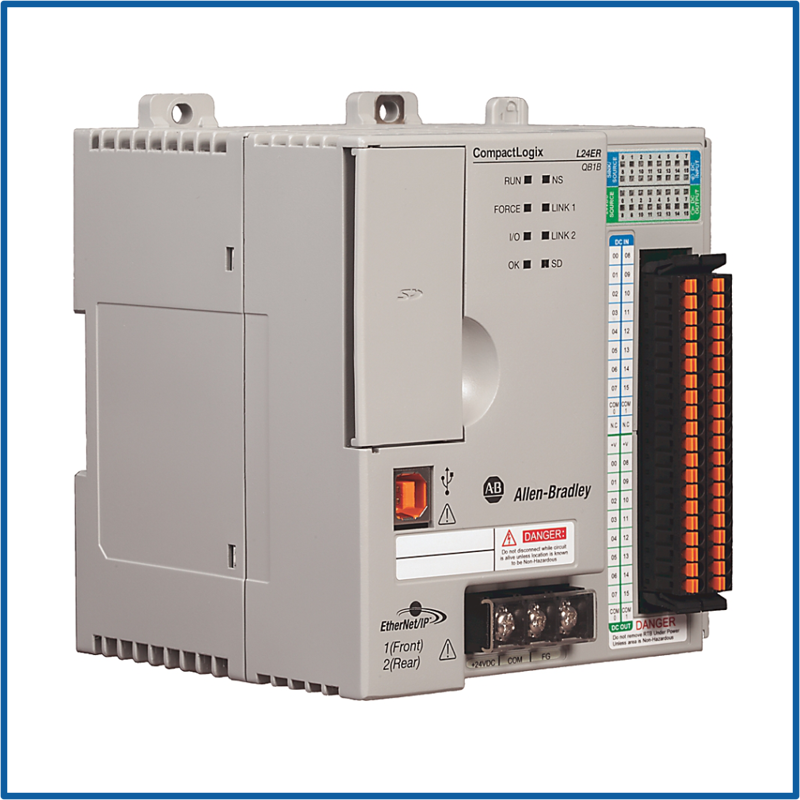

Description: The Allen-Bradley 1769-L24ER-QB1B is a packaged Programmable Automation Controller (PAC) from the CompactLogix 5370 L2 family that is ideal for small to medium industrial automation applications. It combines a strong processor with integrated I/O and communication features in a small package. This controller has 750KB of user memory and 32 embedded digital I/O points (particularly, 16 digital inputs and 16 digital outputs), eliminating the need for separate I/O modules in many applications. The digital outputs are 24V DC sourced, while the inputs are 24V DC, making them appropriate for interfacing with sensors, switches, and actuators. The 1769-L24ER-QB1B excels when it comes to connectivity. It has two EtherNet/IP connections that enable high-speed networking and device integration, as well as a USB connector for programming and diagnostics. Some devices additionally enable RS232 connectivity, which adds flexibility for legacy device integration. The controller may accommodate up to four additional 1769 I/O modules, letting users to scale their systems as needed. It runs on a 24V DC power supply and is DIN rail mounted, making it simple to install in control panels. The 1769-L24ER-QB1B is suited for applications in packing, material handling, machine control, and other situations where space and performance are crucial.
