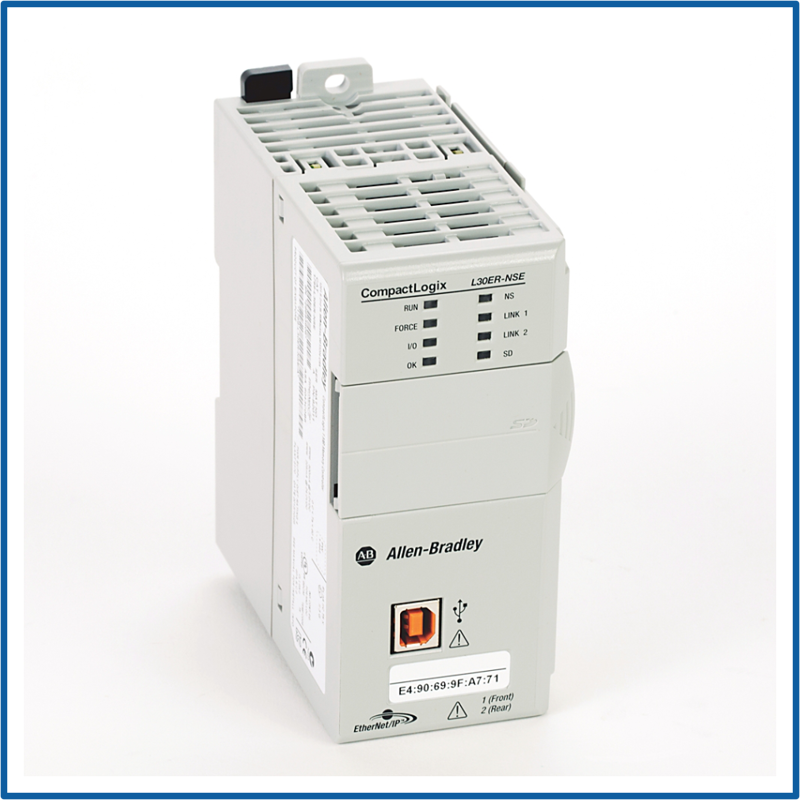

CompactLogix 1 MB No Cap Controller
SKU: 1769-L30ER-NSE
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1769-L30ER-NSE is a CompactLogix 5370 L3 programmable automation controller (PAC) intended for midrange control applications.
It has 1MB of standard logic memory, two EtherNet/IP ports with Device Level Ring (DLR) support, and USB interface for programming and diagnostics.
The "NSE" suffix stands for No SuperCap for Real-Time Clock (RTC), indicating that this model does not retain the RTC during power outages.
This makes it appropriate for systems in which timekeeping during outages is not crucial.
It can accommodate up to 8 local 1769 I/O modules, 16 EtherNet/IP nodes, and a 1GB SD card (expandable to 2GB) for program storage and diagnostics.
The controller has been certified for basic insulation at 30V continuous and type-tested at 500V AC for 60 seconds.
Buy currently uses Select Automation shop pricing and checkout.
Memory & Processing:
Standard Logic Memory: 1MB.
No SuperCap for RTC: Does not retain real-time clock during power loss.
SD Card: 1GB included (expandable to 2GB).
Controller Tasks: Supports multiple tasks and programs.
Communication:
EtherNet/IP Ports: Dual ports with Device Level Ring (DLR) support.
USB Port: For programming and diagnostics.
EtherNet/IP Nodes: Supports up to 16 nodes.
Expansion & Compatibility:
Local I/O Modules: Supports up to 8 modules.
Programming Software: Studio 5000 Logix Designer.
Power Supply Compatibility: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4.
Electrical & Environmental:
Insulation Rating: 30V continuous (basic insulation).
Type Testing: Certified at 500V AC for 60 seconds.
Lifecycle Status: Active Mature.
