      CompactLogix 1 MB Motion Controller

      SKU: 1769-L30ERM

      Out of stock

      Availability: Out of Stock

      Short Description
      Description: The 1769-L30ERM is an Allen-Bradley-branded CompactLogix 5370 L3 programmable automation controller (PAC) designed by Rockwell Automation. It is intended for midsize control systems that require integrated motion, EtherNet/IP connection, and modular I/O extension. With 1 MB of user memory, dual Ethernet connections, and support for up to four axes of CIP motion, it provides a strong and scalable solution for a wide range of industrial automation applications. Memory: 1 MB user memory and 0.5 MB I/O memory. Motion Support: Up to four axes of integrated CIP motion. Ethernet Ports: Two integrated ports that support Device Level Ring (DLR) and linear/star topologies. I/O Expansion: Can accommodate up to 8 local 1769 I/O modules. Communication: Supports up to 16 EtherNet/IP nodes. Removable SD Card: Includes a 1 GB card (supports up to 2 GB) for software backup and data logging. USB Port: Used for programming and firmware updates.

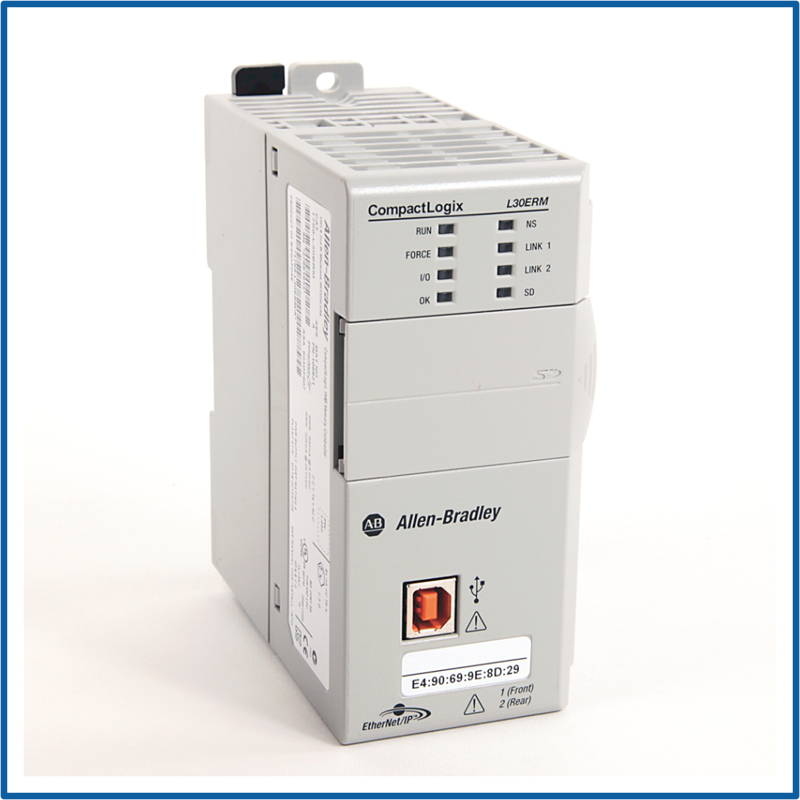

      1769-L30ERM
      Alternative image 1
      Core Features: User Memory: 1 MB. I/O Memory: 0.5 MB. Motion Support: Up to 4 CIP motion axes. EtherNet/IP Nodes: Supports up to 16 nodes. Local I/O Expansion: Up to 8 1769 I/O modules. Programming Port: USB 2.0 Type B. Removable Storage: 1 GB SD card included (supports up to 2 GB). Real-Time Clock: Integrated. Programming Software: Studio 5000 Logix Designer. Communication & Networking: Ethernet Ports: 2 integrated ports. Supported Topologies: Star, linear, Device Level Ring (DLR). Protocols: EtherNet/IP, CIP motion, TCP/IP. Integrated Web Server: For diagnostics and configuration. Power & Electrical: Power Supply: Requires external 1769 CompactLogix power supply. Backplane Current Draw: 800 mA @ 5VDC. Physical Characteristics: Dimensions (HxWxD): 118 x 87 x 90 mm (4.65 x 3.43 x 3.54 in.). Weight: Approx. 0.5 kg (1.1 lb). Mounting: DIN rail or panel mount. Environmental Ratings: Operating Temperature: 0 to 60 °C (32 to 140 °F). Storage Temperature: -40 to 85 °C (-40 to 185 °F). Humidity: 5% to 95% non-condensing. Shock: 30 g operational, 50 g non-operational. Vibration: 5 g @ 10–500 Hz.
