CompactLogix 1 MB Motion Controller
SKU: 1769-L30ERMK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

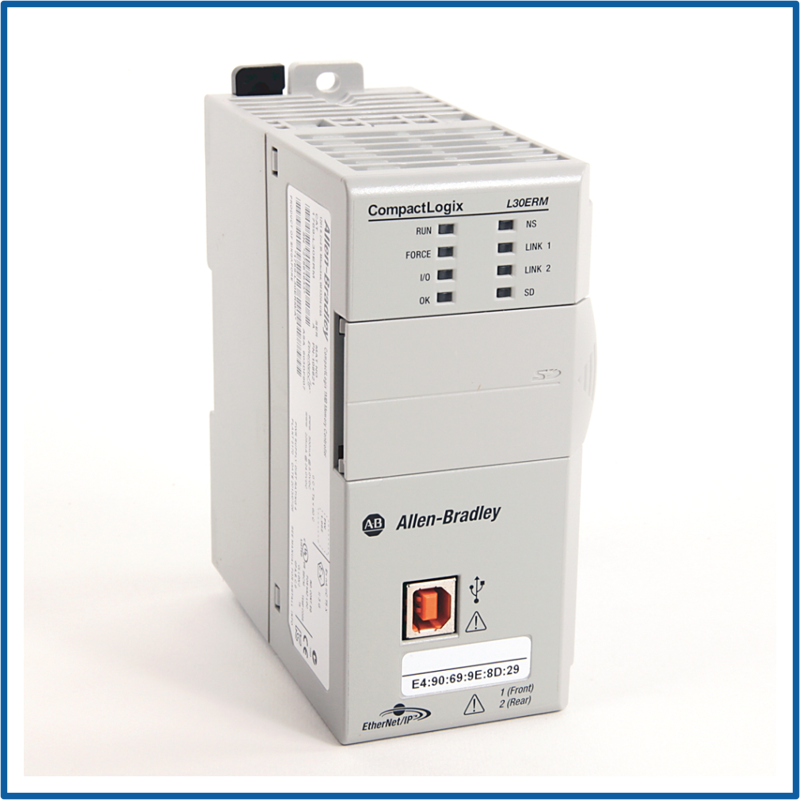

The Allen-Bradley 1769-L30ERMK is a ruggedized CompactLogix motion controller intended for mid-sized automation systems requiring precision motion control and environmental resilience.
It is part of the 5370 L3 series and combines high-performance computing, EtherNet/IP connection, and motion control capabilities in a compact, DIN-rail-mountable form factor.
This controller can handle up to four axes of CIP motion, including kinematics, making it ideal for coordinated multi-axis applications like robotics, packaging, and material handling.
The "K" suffix denotes conformal coating, which shields internal circuitry from moisture, dust, and corrosive agents—ideal for severe industrial settings such as food processing or chemical facilities.
This includes:
1 MB of user RAM.
Dual EtherNet/IP ports, including Device Level Ring (DLR) capability.
USB 2.0 port for programming and diagnostics.
Supports up to eight local 1769 I/O modules.
1GB SD card is supplied (expandable up to 2GB).
24V DC power supply.
The 1769-L30ERMK is a reliable solution for demanding automation jobs since it combines motion control, network redundancy, and environmental protection.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Controller Type: CompactLogix 5370 L3.
Catalogue Number: 1769-L30ERMK.
User Memory: 1MB.
Motion Support:
Up to 4 axes of CIP motion.
Supports kinematics for coordinated multi-axis control.
Communication Ports:
2 EtherNet/IP ports with Device Level Ring (DLR) support.
1 USB 2.0 port for programming and diagnostics.
EtherNet/IP Capacity:
Supports up to 16 EtherNet/IP nodes.
120 TCP/IP connections.
Expansion Capability:
Supports up to 8 local 1769 I/O modules.
Program Tasks:
Up to 32 tasks.
Up to 100 programs per task.
Embedded Power Supply: 24V DC input.
SD Card Slot:
Includes 1GB SD card.
Supports up to 2GB.
Conformal Coating: Yes (K-suffix) for protection against moisture, dust, and corrosive agents.
Mounting Type: DIN rail.
Operating Temperature: 0°C to 60°C (32°F to 140°F).
Isolation Voltage: 30V continuous, basic insulation.
Certifications: UL, CE, CSA (certifications may vary by production date).
Lifecycle Status: Active Mature.
