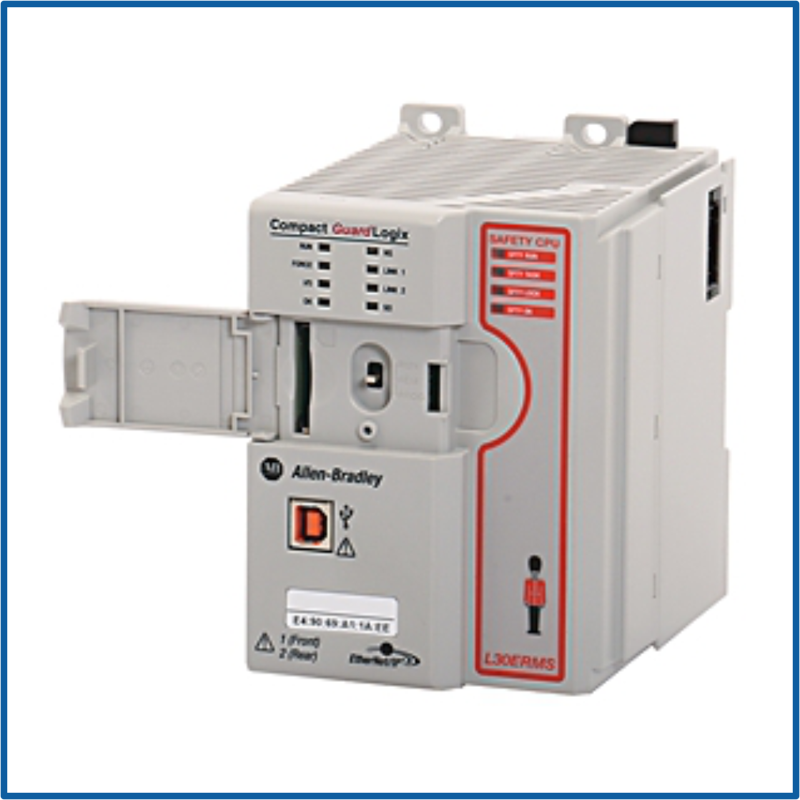

Compact GuardLogix CPU, L30ERMS, 1M/0.5M
SKU: 1769-L30ERMS
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1769-L30ERMS is a safety-enabled programmable automation controller (PAC) from the Compact GuardLogix 5370 L3 family, intended for mid-range industrial applications that require both conventional and safety controls.
It combines motion, safety, and communication features in a small package.
This controller has these features:
1 MB of ordinary logic memory.
0.5 MB of safety memory.
Dual EtherNet/IP ports, including Device Level Ring (DLR) capability.
USB programming port.
Support for up to four axes of CIP motion, including kinematics and integrated safety features.
It can support up to eight local I/O modules and sixteen EtherNet/IP nodes, as well as a 1GB SD card for program storage and diagnostics.
The unit is certified for SIL 3 and PLe safety requirements, making it appropriate for safety-critical automated systems.
Buy currently uses Select Automation shop pricing and checkout.
Memory & Processing:
Standard Logic Memory: 1MB.
Safety Logic Memory: 0.5MB.
SD Card: 1GB included (expandable to 2GB).
Controller Tasks: Supports multiple tasks and up to 100 programs per task.
Motion & Safety Control:
Motion Axes: Supports up to 4 axes of CIP motion.
Kinematics: Integrated support for robotic motion profiles.
Safety Certifications:
SIL 3 (IEC 61508 / EN 62061).
PLe (EN ISO 13849-1).
Communication:
EtherNet/IP Ports: Dual ports with Device Level Ring (DLR) support.
USB Port: For programming and diagnostics.
EtherNet/IP Nodes: Supports up to 16 nodes.
Expansion & Compatibility:
Local I/O Modules: Supports up to 8 modules.
Programming Software: Studio 5000 Logix Designer.
Power Supply Compatibility: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4.
Environmental & Durability:
Mounting: DIN rail.
Lifecycle Status: Active Mature.
