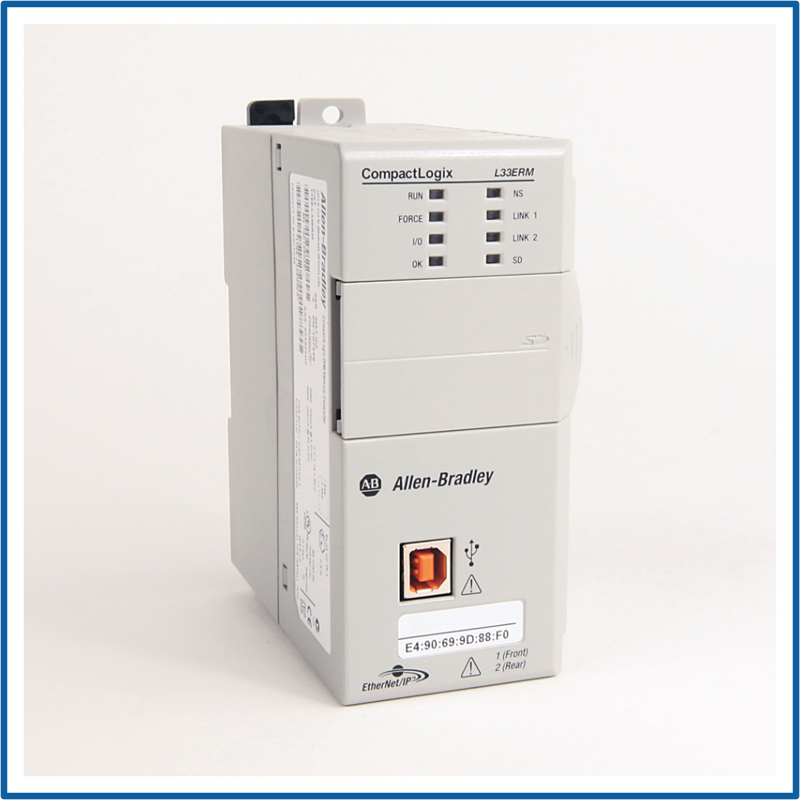

CompactLogix 2 MB Motion Controller
SKU: 1769-L33ERMK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1769-L33ERMK is a ruggedized version of the CompactLogix 5370 L3 controller, intended for medium- to high-performance industrial automation.
It has 2 MB of user memory, up to 8 CIP motion axes, dual Ethernet connections for high-speed communication, and Device Level Ring (DLR) topologies.
The "K" suffix denotes conformal coating, which protects internal circuitry from moisture, dust, and corrosive environments, making it suitable for severe or demanding working situations.
Memory: 2 MB user memory and 0.5 MB I/O memory.
Motion Support: Supports up to eight CIP motion axes.
Ethernet Ports: Two integrated ports that support DLR, star, and linear topologies.
I/O Expansion: Can accommodate up to 16 local 1769 I/O modules.
Communication: Supports up to 32 EtherNet/IP nodes.
Removable SD Card: Includes a 1 GB card (supports up to 2 GB) for software backup and data logging.
USB Port: Used for programming and firmware updates.
Real-Time Clock: Integrated.
Conformal Coating: Yes, to improve environmental durability.
Programming software: Studio 5000 Logix Designer.
Buy currently uses Select Automation shop pricing and checkout.
Core Features:
User Memory: 2 MB.
I/O Memory: 0.5 MB.
Motion Support: Up to 8 CIP motion axes.
EtherNet/IP Nodes: Supports up to 32 nodes.
Local I/O Expansion: Up to 16 1769 I/O modules.
Programming Port: USB 2.0 Type B.
Removable Storage: 1 GB SD card included (supports up to 2 GB).
Real-Time Clock: Integrated.
Conformal Coating: Yes (for enhanced protection in harsh environments).
Programming Software: Studio 5000 Logix Designer.
Communication & Networking:
Ethernet Ports: 2 integrated ports.
Supported Topologies: Star, linear, Device Level Ring (DLR).
Protocols: EtherNet/IP, CIP motion, TCP/IP.
Integrated Web Server: For diagnostics and configuration.
Power & Electrical:
Power Supply: Requires external 1769 CompactLogix power supply.
Backplane Current Draw: 800 mA @ 5VDC.
Physical Characteristics:
Dimensions (H x W x D): 118 x 87 x 90 mm (4.65 x 3.43 x 3.54 in.).
Weight: Approx. 0.5 kg (1.1 lb).
Mounting: DIN rail or panel mount.
Environmental Ratings:
Operating Temperature: 0 to 60 °C (32 to 140 °F).
Storage Temperature: -40 to 85 °C (-40 to 185 °F).
Humidity: 5% to 95% non-condensing.
Shock: 30 g operational, 50 g non-operational.
Vibration: 5 g @ 10–500 Hz.
