      CompactLogix 3 MB Motion Controller

      SKU: 1769-L36ERM

      Out of stock

      Availability: Out of Stock

      Short Description
      Description: The most potent controller in the CompactLogix 5370 L3 series, created by Rockwell Automation, is the 1769-L36ERM. It has 3 MB of user memory, dual Ethernet ports, and can handle up to 16 CIP motion axes, making it perfect for high-performance, motion-intensive applications. It provides robust and scalable control for complicated automation systems by supporting Device Level Ring (DLR) and modular I/O extension. User Memory: 3 megabytes. I/O Memory: 0.5 megabytes. Motion Support: up to 16 CIP motion axes. EtherNet/IP Nodes: Can accommodate up to 48 nodes. Local I/O Expansion: Supports up to 30 1769 I/O modules. Communication Ports: Two Ethernet ports (DLR compatible), one USB port. Removable SD Card: 1 GB (up to 2 GB capacity). Real-Time Clock: Integrated. Programming software: Studio 5000 Logix Designer.

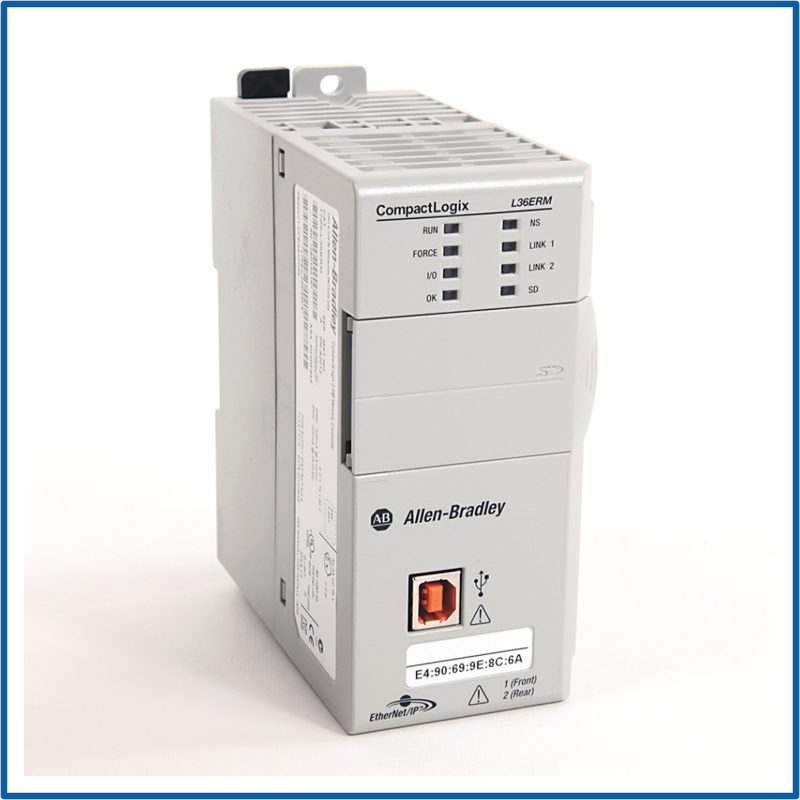

      1769-L36ERM
      Alternative image 1
      Core Features: User Memory: 3 MB. I/O Memory: 0.5 MB. Motion Support: Up to 16 CIP motion axes. EtherNet/IP Nodes: Supports up to 48 nodes. Local I/O Expansion: Up to 30 1769 I/O modules. Programming Port: USB 2.0 Type B. Removable Storage: 1 GB SD card included (supports up to 2 GB). Real-Time Clock: Integrated. Programming Software: Studio 5000 Logix Designer. Communication & Networking: Ethernet Ports: 2 integrated ports. Supported Topologies: Star, linear, Device Level Ring (DLR). Protocols: EtherNet/IP, CIP motion, TCP/IP. Integrated Web Server: For diagnostics and configuration. Power & Electrical: Power Supply: Requires external 1769 CompactLogix power supply. Backplane Current Draw: 800 mA @ 5VDC. Physical Characteristics: Dimensions (HxWxD): 118 x 87 x 90 mm (4.65 x 3.43 x 3.54 in.). Weight: Approx. 0.5 kg (1.1 lb). Mounting: DIN rail or panel mount. Environmental Ratings: Operating Temperature: 0 to 60 °C (32 to 140 °F). Storage Temperature: -40 to 85 °C (-40 to 185 °F). Humidity: 5% to 95% non-condensing. Shock: 30 g operational, 50 g non-operational. Vibration: 5 g @ 10–500 Hz.
