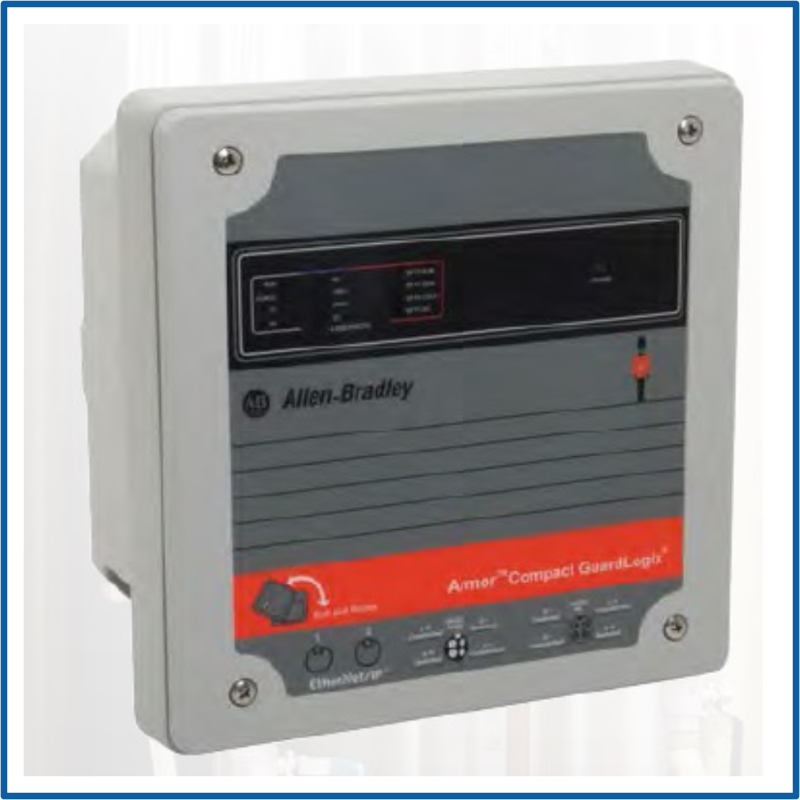

Armor Compact GuardLogix CPU, 3MB/1.5MB
SKU: 1769-L36ERMOS
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1769-L36ERMOS is a rugged, safety-enabled programmable automation controller (PAC) from the Armor Compact GuardLogix 5370 L3 family, designed for harsh industrial situations.
It integrates standard and safety control into a single unit, providing excellent performance, integrated motion, and better protection in a compact IP67-rated form factor.
Memory:
3MB of ordinary logic.
1.5 MB for safety logic.
Motion Control:
allows for up to 16 CIP motion axes.
Kinematics and safety functions are combined.
Communication:
Dual EtherNet/IP ports, including Device Level Ring (DLR) capability.
USB programming port.
Expansion:
It supports up to 30 local I/O modules.
There are up to 48 EtherNet/IP nodes.
Storage:
1GB SD card is supplied (expandable up to 2GB).
Certifications:
SIL CL3 (IEC 61508/EN62061).
PL (EN ISO 13849-1).
The environmental rating is IP67 for dust and water protection.
Buy currently uses Select Automation shop pricing and checkout.
Memory & Processing:
Standard Logic Memory: 3MB.
Safety Logic Memory: 1.5MB.
SD Card: 1GB included (expandable to 2GB).
Motion & Safety Control:
Motion Axes: Supports up to 16 axes of CIP motion.
Kinematics: Integrated support for robotic motion.
Safety Certifications:
SIL CL3 (IEC 61508 / EN62061).
PLe (EN ISO 13849-1).
Communication:
EtherNet/IP Ports: Dual ports with Device Level Ring (DLR) support.
USB Port: For programming and diagnostics.
EtherNet/IP Nodes: Supports up to 48 nodes.
Expansion & Compatibility:
Local I/O Modules: Supports up to 30 modules.
Programming Software: Studio 5000 Logix Designer.
Mounting: DIN rail.
Environmental Rating: IP67 (dust and water resistant).
Power & Environmental:
Power Supply: 24V DC.
Operating Temperature: –20°C to +65°C.
