CompactLogix 5MB controller

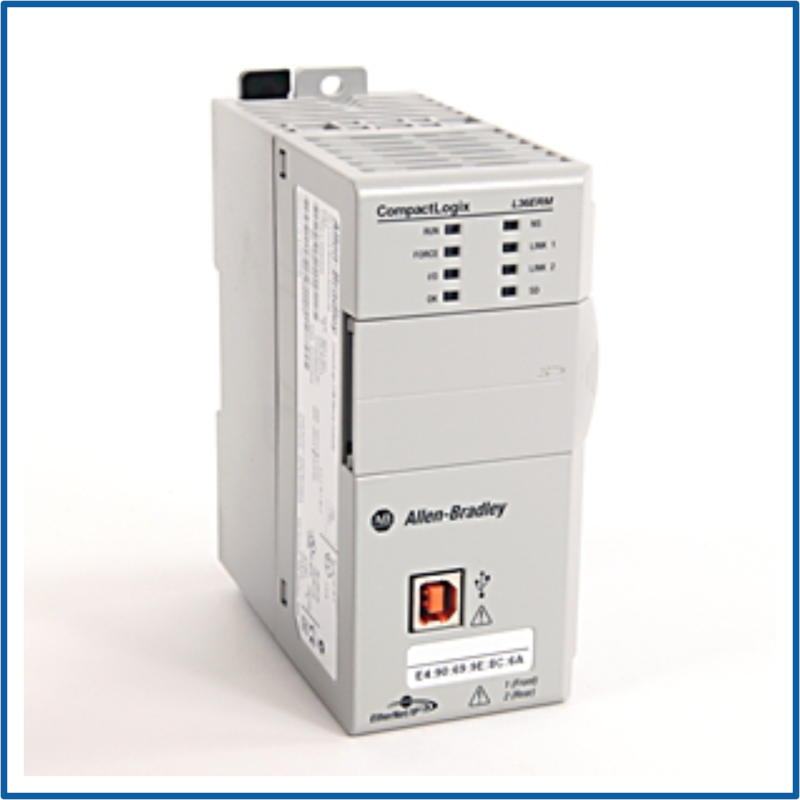

Description: The Allen-Bradley 1769-L38ERM is the most advanced controller in the CompactLogix 5370 L3 series, intended for demanding industrial situations requiring comprehensive motion control, high-speed networking, and scalable I/O. With 5MB of user memory, it can handle sophisticated logic, big data volumes, and heavy motion activities with ease. This controller can handle up to 16 axes of CIP motion and has kinematics functions for synchronized multi-axis control, making it perfect for applications like robotics, packing, material handling, and high-speed assembly. It features: Dual EtherNet/IP ports with Device Level Ring (DLR) capability ensure network redundancy. For programming and diagnostics, use the USB 2.0 port. Supports up to 30 local 1769 I/O modules. A 1GB SD card is supplied (expandable to 2GB) for data logging and backup. DIN rail installation and a 24-volt DC power supply. The operating temperature range is 0°C to 60°C (32°F to 140°F). The 1769-L38ERM is suited for large-scale control systems that require motion precision, network flexibility, and reliable performance.
