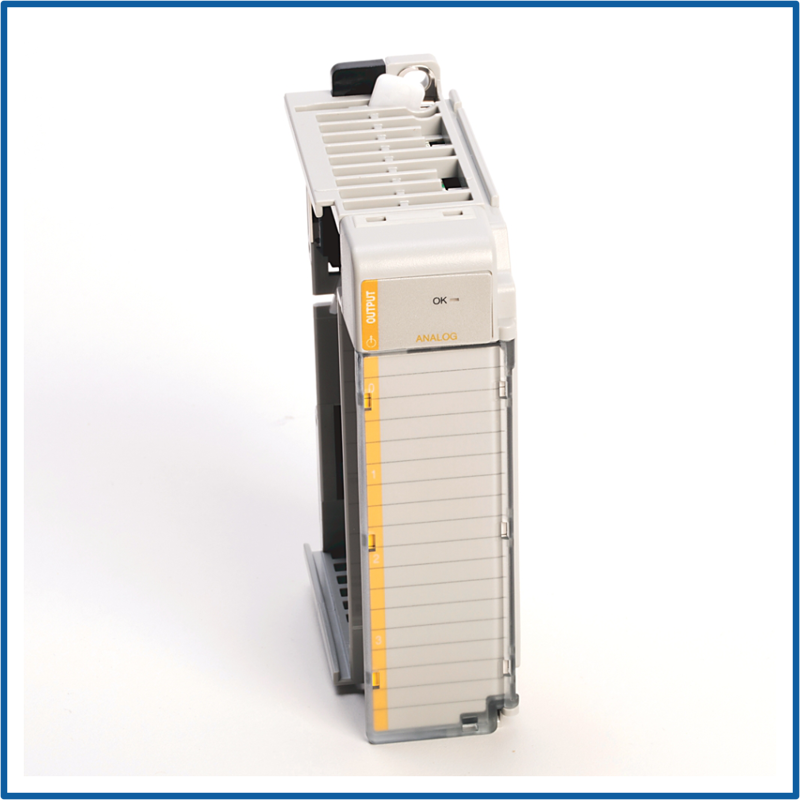

CompactLogix 2 Pt A/O C and V Module

Description: The 1769-OF2 is a versatile analogue output module from Rockwell Automation's Compact I/O 1769 family, which is compatible with CompactLogix and MicroLogix 1500 systems. It has two analogue output channels, each of which may be configured for voltage or current output. This adaptability makes it suitable for operating analogue devices like valves, actuators, and variable-speed drives in process automation and industrial control applications. Each channel includes user-configurable fault modes, overrange/under range detection, and high-resolution output to ensure accurate and dependable analogue signal creation. Channels: Two analogue outputs. Output Types: Voltage: ±10V (0-10V). Current: 0-20 mA; 4-20 mA. Resolution: 15 bits (unipolar). 16-bit (bipolar). Accuracy: ±0.5% whole scale at 25°C. Conversion rate: 2.5 milliseconds per channel. Load Resistance: Voltage: >1 kΩ. Current: 0–500 Ω. Fault Mode: Hold Last State or Return to User-Defined Value. Yes, overrange and underrange detection are enabled. Isolation voltage: 75V DC continuous. Compatible systems include CompactLogix and MicroLogix 1500. Mounting options include DIN rail or panel mount.
