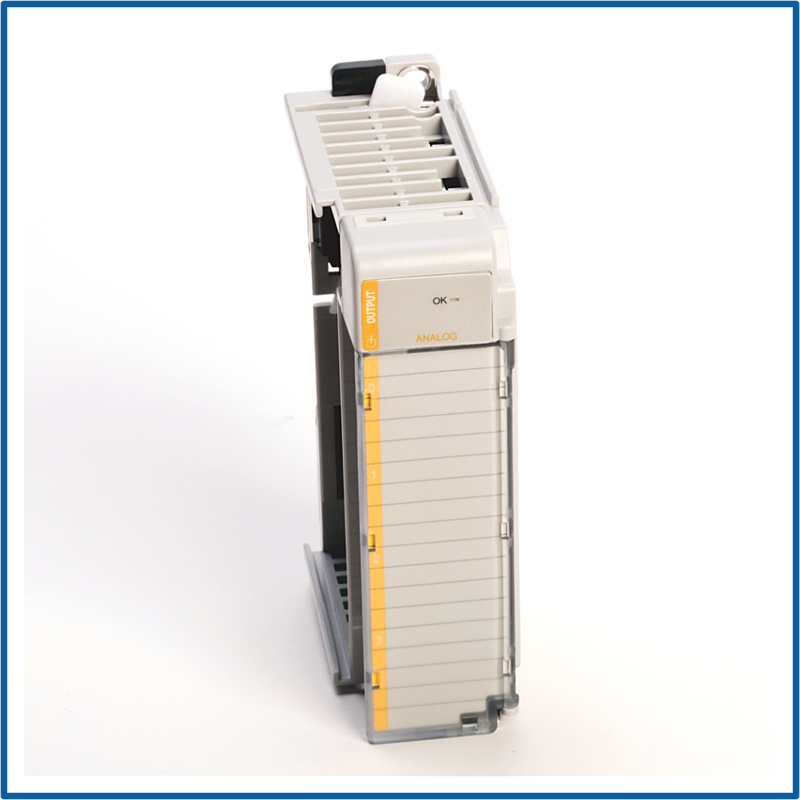

CompactLogix 2 Pt A/O C and V Module
SKU: 1769-OF2K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Allen-Bradley 1769-OF2K is a ruggedized analogue output module from the Compact I/O 1769 series, which is compatible with CompactLogix and MicroLogix 1500 controllers.
It has two single-ended analogue output channels that can send both voltage and current signals, making it ideal for controlling analogue devices like valves, actuators, and motors.
The "K" suffix denotes the presence of conformal coating, which shields the module's internal circuitry from moisture, dust, and corrosive substances, making it excellent for use in food processing, chemical plants, and outdoor applications.
Each channel offers a variety of output ranges, including:
Voltage range: ±10V, 0-10V, 0-5V, and 1-5V.
Current: 0-20 mA; 4-20 mA.
The module has 15-bit resolution, is highly accurate, and has diagnostic status LEDs.
It conveniently mounts on a DIN rail or panel and communicates with other I/O modules via a built-in communication bus.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Catalogue Number: 1769-OF2K.
Module Type: Analog Output.
Number of Outputs: 2 single-ended channels.
Signal Types Supported:
Voltage: ±10V DC, 0–10V DC, 0–5V DC, 1–5V DC.
Current: 0–20 mA, 4–20 mA.
Resolution: 15 bits.
Accuracy: ±0.5% full scale at 25°C.
Load Requirements:
Voltage output: ≥1 kΩ.
Current output: ≤500 Ω.
Repeatability: High repeatability under consistent conditions.
Isolation Voltage: 30V continuous.
Status Indicators: LED indicators for module and channel status.
Mounting Options: DIN rail or panel mount.
Compatible Controllers: CompactLogix and MicroLogix 1500.
Conformal Coating: Yes (K-suffix) for protection against moisture, dust, and corrosive agents.
Certifications: UL, CE, KC, C-TICK, Marine, GOST.
Lifecycle Status: Active Mature.
