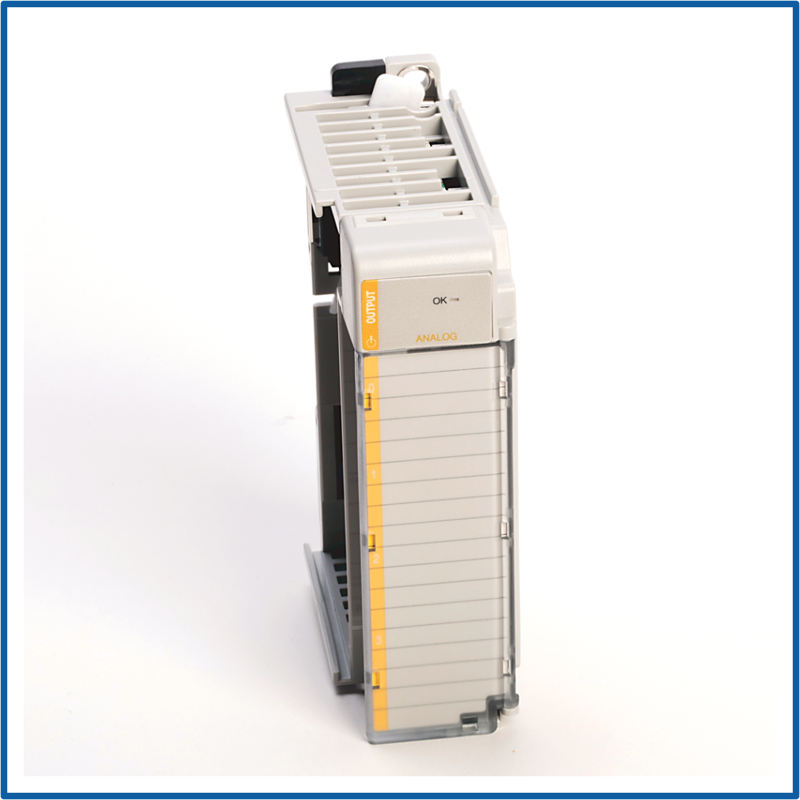

CompactLogix 4 Pt A/O C and V Module
SKU: 1769-OF4K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Allen-Bradley 1769-OF4K is a four-channel analogue output module from the Compact I/O 1769 family that works with CompactLogix and MicroLogix 1500 controllers.
It provides voltage and current outputs, making it appropriate for operating analogue devices including valves, actuators, motors, and instruments.
Each channel can be separately set to output:
Voltage range: ±10V, 0-10V, 0-5V, and 1-5V.
Current: 0-20 mA; 4-20 mA.
The suffix "K" denotes conformal coating, which shields the module's internal circuitry from moisture, dust, and corrosive agents—ideal for use in food processing, chemical plants, marine environments, and other demanding industrial situations.
The module includes 15-bit resolution, high accuracy, and diagnostic LED indicators.
It can be mounted on DIN rails or panels and communicates with other I/O modules via an integrated communication bus.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Catalogue Number: 1769-OF4K.
Module Type: Analog Output.
Number of Outputs: 4 single-ended channels.
Output Signal Types:
Voltage: ±10V, 0–10V, 0–5V, 1–5V.
Current: 0–20 mA, 4–20 Ma.
Resolution: 15 bits.
Accuracy: ±0.5% of full scale at 25°C.
Load Requirements:
Voltage output: ≥1 kΩ.
Current output: ≤500 Ω.
Isolation Voltage: 510V AC or 720V DC for 1 minute (qualification test), output group to bus.
Conformal Coating: Yes (K-suffix) – protects against moisture, dust, and corrosive agents.
Status Indicators: LED indicators for module and channel status.
Mounting Options: DIN rail or panel mount.
Compatible Controllers: CompactLogix and MicroLogix 1500.
Certifications: UL, CE, KC, C-TICK, Marine, GOST.
Lifecycle Status: Active Mature.
