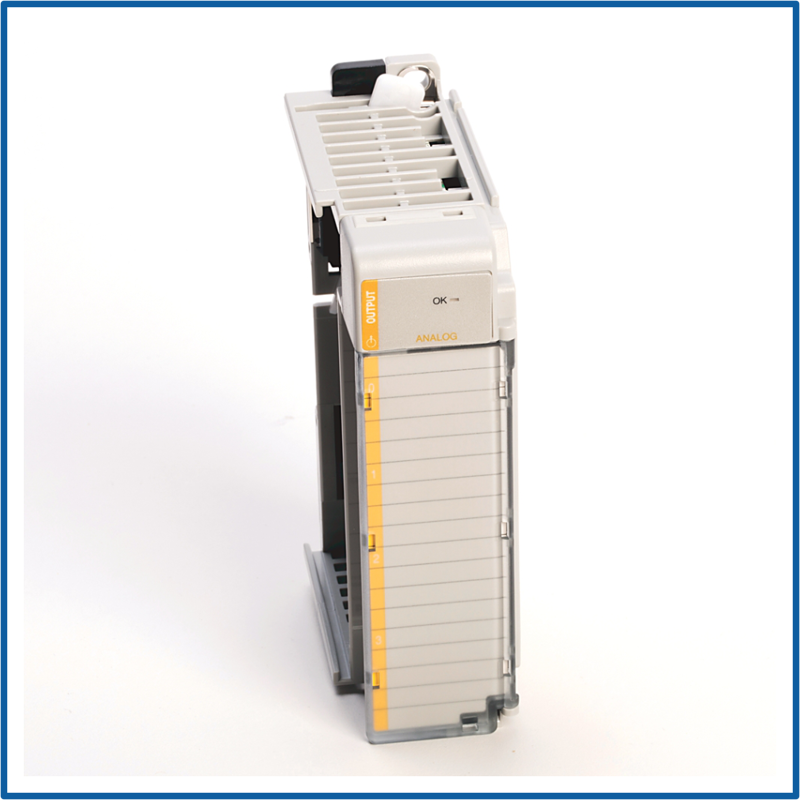

CompactLogix 8 Pt A/O Voltage Module
SKU: 1769-OF8V
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Allen-Bradley 1769-OF8V is an eight-channel analogue output module from the Compact I/O 1769 family that works with CompactLogix and MicroLogix 1500 controllers.
It is designed to provide voltage-only analogue signals, making it excellent for operating devices like valves, actuators, motors, and sensors that require a stable voltage source.
Each channel is single-ended and connected to a common analogue ground (ANLG COM). The module supports several output ranges, including:
±10V DC.
0-10V DC.
0-5V DC.
1-5V DC.
With a 15-bit resolution, the 1769-OF8V provides precise control and great precision across all channels.
It has diagnostic status LEDs, may be mounted on DIN rails or panels, and communicates easily with other I/O modules via a built-in bus.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Catalogue Number: 1769-OF8V.
Module Type: Analog Output.
Number of Outputs: 8 single-ended channels.
Signal Type: Voltage only.
Configurable Voltage Ranges:
±10V DC.
0–10V DC.
0–5V DC.
1–5V DC.
Resolution: 15-bit (provides fine control over output signals).
Load Resistance: ≥1 kΩ per channel.
Channel Reference: All outputs referenced to ANLG COM (common analogue ground).
Isolation Voltage:
500V AC / 710V DC for 1 minute (qualification test).
30V AC / 30V DC working voltage (IEC Class 2 reinforced insulation).
Status Indicators: LED indicators for module status.
Mounting Options: DIN rail or panel mount.
Dimensions: 2.5 cm x 17.8 cm x 12.7 cm.
Weight: 0.4 kg.
Compatible Controllers: CompactLogix and MicroLogix 1500.
Certifications: UL, CE, KC, C-TICK, Marine, GOST.
Lifecycle Status: Active Mature.
