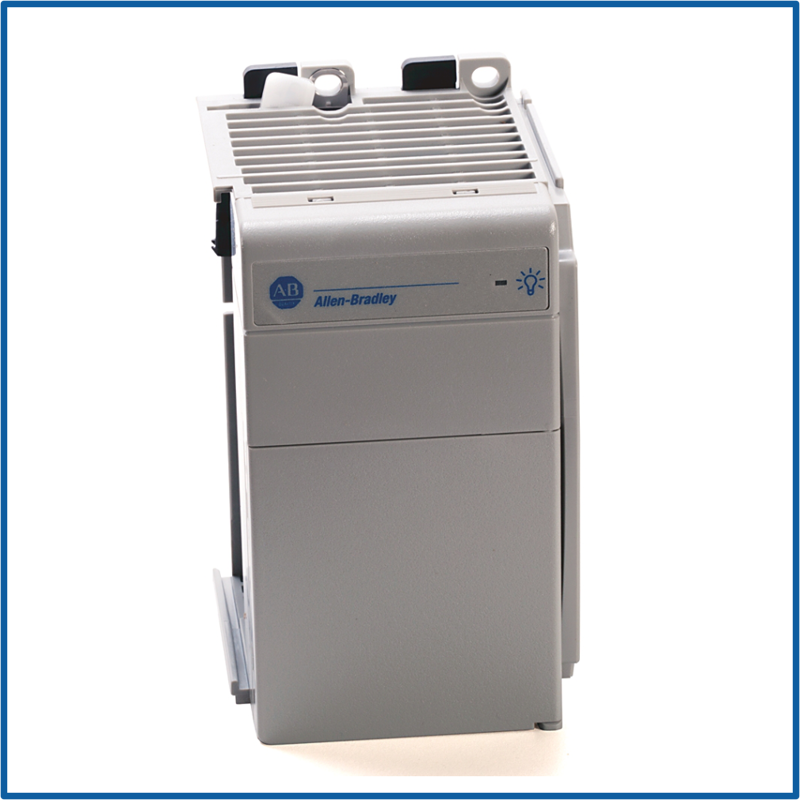

CompactLogix AC 2A/0.8A Power Supply
SKU: 1769-PA2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1769-PA2 AC power supply module is intended for use with CompactLogix and MicroLogix 1500 systems.
It converts 85-265V AC input into regulated DC output that powers system modules.
It offers 2A at 5V DC and 0.8A at 24V DC, making it suitable for controllers and I/O modules in small to medium-sized automation applications.
This module is DIN rail or panel mountable, with built-in overcurrent safety.
It is excellent for industrial situations that require dependable and compact power delivery for programmable logic controllers (PLCs).
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Voltage Range: 85–265V AC.
Input Frequency: 47–63 Hz.
Inrush Current: 30 A max.
Output Voltage:
5V DC @ 2.0 A.
24V DC @ 0.8 A.
Overcurrent Protection: Electronic protection with auto-recovery.
Power & Connectivity:
Backplane Current Capacity:
5V DC: 2.0 A.
24V DC: 0.8 A.
Power Supply Distance Rating: 8 modules.
Mounting: DIN rail or panel mount.
Physical & Environmental:
Dimensions (H x W x D): 118 mm x 70 mm x 87 mm (4.65 in x 2.76 in x 3.43 in).
Weight: Approx. 0.55 kg (1.2 lbs).
Operating Temperature: 0°C to 60°C (32°F to 140°F).
Storage Temperature: –40°C to 85°C (–40°F to 185°F).
Certifications: CE, UL, cUL.
Lifecycle Status: Active Mature.
