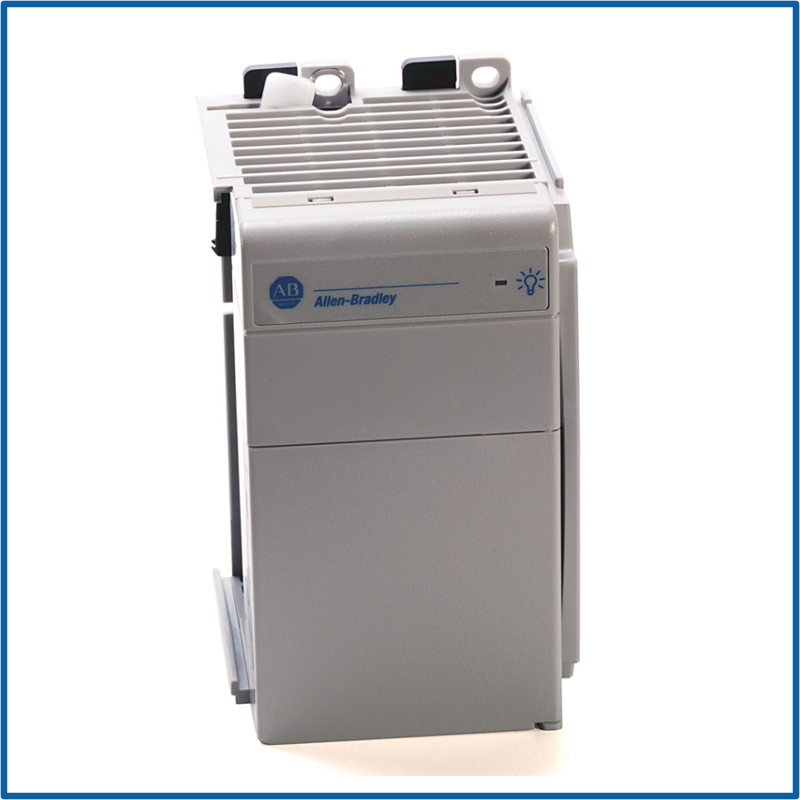

CMPLX Selectable AC 4A/2A Power Supply
SKU: 1769-PA4
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1769-PA4 is a high-capacity AC power supply module built specifically for CompactLogix 1769-L3x controllers and I/O modules.
It has a switchable input voltage range of 85-132V AC or 170-265V AC, which allows for flexible deployment in a variety of industrial power situations.
This module provides 4A at 5V DC and 2A at 24V DC, making it ideal for powering bigger systems with several I/O modules.
It conveniently attaches on a DIN rail or panel and has built-in overcurrent protection to ensure safe operation.
The 1769-PA4 guarantees dependable and scalable power delivery for mid- to large-sized CompactLogix systems, making it perfect for industrial automation applications.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Voltage Range:
Switch-selectable:
85–132V AC.
170–265V AC.
Frequency: 47–63 Hz.
Output Voltage & Current:
5V DC @ 4A.
24V DC @ 2A.
Inrush Current: 30 A max.
Overcurrent Protection: Electronic, auto-recovery.
Power & Connectivity:
Backplane Current Capacity:
5V DC: 4A.
24V DC: 2A.
Power Supply Distance Rating: Supports up to 8 modules.
Mounting: DIN rail or panel mount.
Physical & Environmental:
Dimensions (H x W x D): 15.5 cm x 13 cm x 8.5 cm.
Weight: Approx. 0.6 kg.
Operating Temperature: 0°C to 60°C (32°F to 140°F).
Storage Temperature: –40°C to 85°C (–40°F to 185°F).
Certifications: CE, UL, cUL.
Lifecycle Status: Active Mature.
