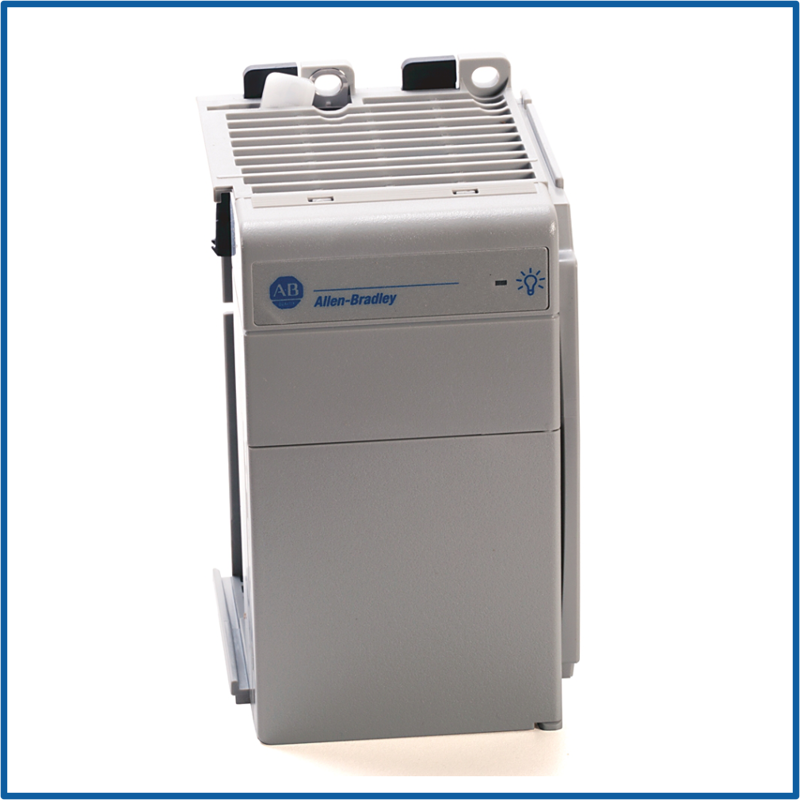

CMPLX Selectable AC 4A/2A Power Supply
SKU: 1769-PA4K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1769-PA4K AC power supply module is intended for use with CompactLogix 1769-L3x controllers and I/O modules.
It has a switchable input voltage range of either 85-132V AC or 170-265V AC, making it suitable for a variety of industrial power situations.
This module produces 4A at 5V DC and 2A at 24V DC, which is ample power for larger CompactLogix systems with several I/O modules.
It is conveniently mounted on a DIN rail or panel and has built-in overcurrent protection for safe and dependable operation.
The 1769-PA4K is suited for industrial automation applications that require flexible and scalable power delivery.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Voltage Range:
Switch-selectable:
85–132V AC.
170–265V AC.
Frequency: 47–63 Hz.
Output Voltage & Current:
5V DC @ 4A.
24V DC @ 2A.
Inrush Current: 30 A max.
Overcurrent Protection: Electronic, auto-recovery.
Power & Connectivity:
Backplane Current Capacity:
5V DC: 4A.
24V DC: 2A.
Power Supply Distance Rating: Supports up to 8 modules.
Mounting: DIN rail or panel mount.
Physical & Environmental:
Dimensions: 15.5 cm x 13 cm x 8.5 cm.
Weight: Approx. 0.6 kg.
Operating Temperature: 0°C to 60°C (32°F to 140°F).
Storage Temperature: –40°C to 85°C (–40°F to 185°F).
Certifications: CE, UL, cUL.
Lifecycle Status: Active Mature.
