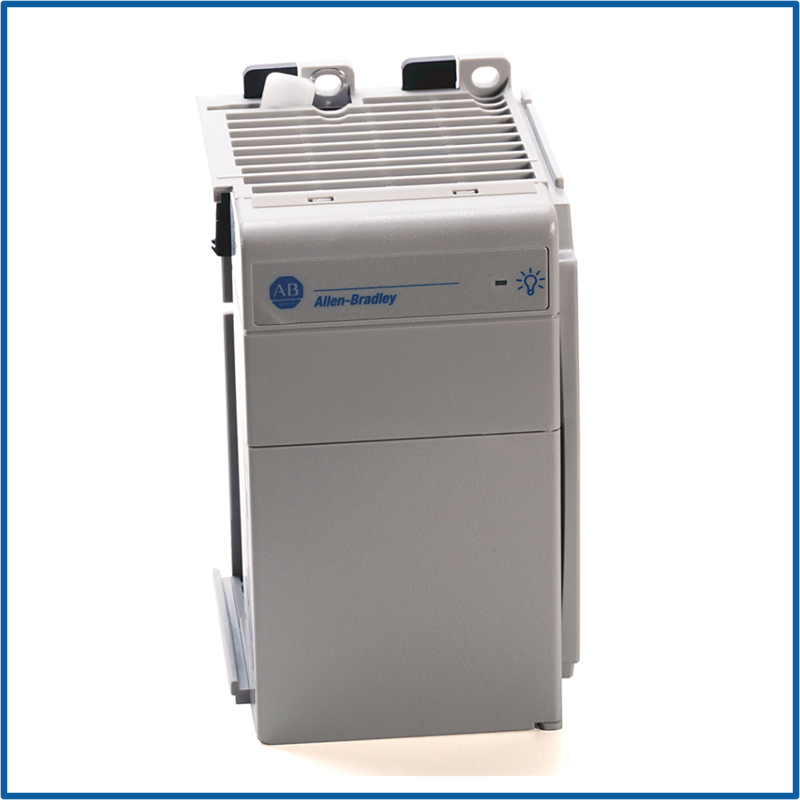

CompactLogix DC 2A/0.8A Power Supply
SKU: 1769-PB2K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1769-PB2K is a DC power supply module designed to work with CompactLogix controllers and I/O modules.
It accepts a 24V DC input and provides a regulated output of 2A at 5V DC and 0.8A at 24V DC, making it ideal for powering small to medium-sized control systems.
The PB2K's distinguishing feature is its conformal coating, which provides superior protection against moisture, dust, and corrosive conditions.
This makes it perfect for industrial applications in severe or demanding environments.
The module has electronic overcurrent protection with auto-recovery and is readily mounted on a DIN rail or panel.
It can accommodate up to eight modules in a CompactLogix system.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Voltage Range: 24V DC nominal (acceptable range: 19.2–31.2V DC).
Output Voltage & Current:
5V DC @ 2A.
24V DC @ 0.8A.
Inrush Current: Up to 30 A max.
Power Supply Distance Rating: Supports up to 8 modules.
Protection & Coating:
Overcurrent Protection: Electronic, with auto-recovery.
Conformal Coating: Yes — provides enhanced resistance to moisture, dust, and corrosive environments.
Physical & Environmental:
Mounting: DIN rail or panel mount.
Certifications: CE, UL, cUL.
Lifecycle Status: Active Mature.
