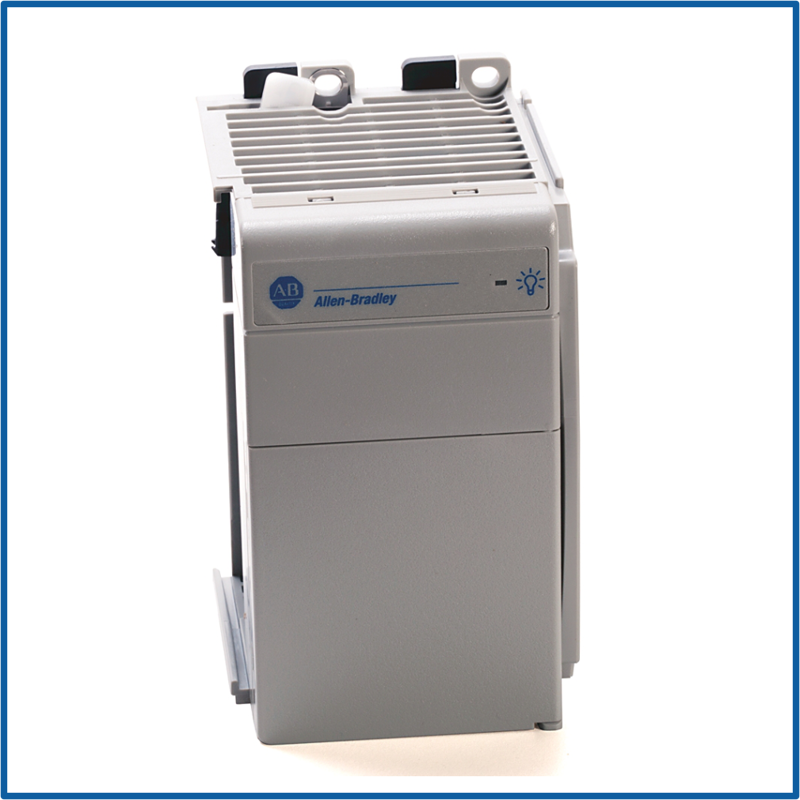

CompactLogix DC 4A/2A Power Supply
SKU: 1769-PB4
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1769-PB4 is a high-capacity DC power supply module designed to work with CompactLogix controllers and I/O modules.
It accepts a 24V DC input and produces a regulated output of 4A at 5V DC and 2A at 24V DC, making it suitable for powering bigger control systems.
This module provides electrical overcurrent protection with auto-recovery and can support up to 8 modules in a CompactLogix system.
It may be readily mounted on a DIN rail or panel and is industrially certified.
With its powerful output and compact form, the 1769-PB4 is ideal for demanding automation systems that require dependable DC power distribution.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Voltage Range: 19.2–31.2V DC.
Nominal Input Voltage: 24V DC.
Output Voltage & Current:
5V DC @ 4A.
24V DC @ 2A.
Inrush Current: Up to 30 A max.
Power Supply Distance Rating: Supports up to 8 modules.
Protection: Electronic overcurrent protection with auto-recovery.
Physical & Environmental:
Mounting: DIN rail or panel mount.
Certifications: CE, UL, cUL.
Lifecycle Status: Active Mature.
Typical Applications: CompactLogix L3x and L3y controllers and I/O modules.
