CompactLogix Replacement Door
SKU: 1769-RD
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

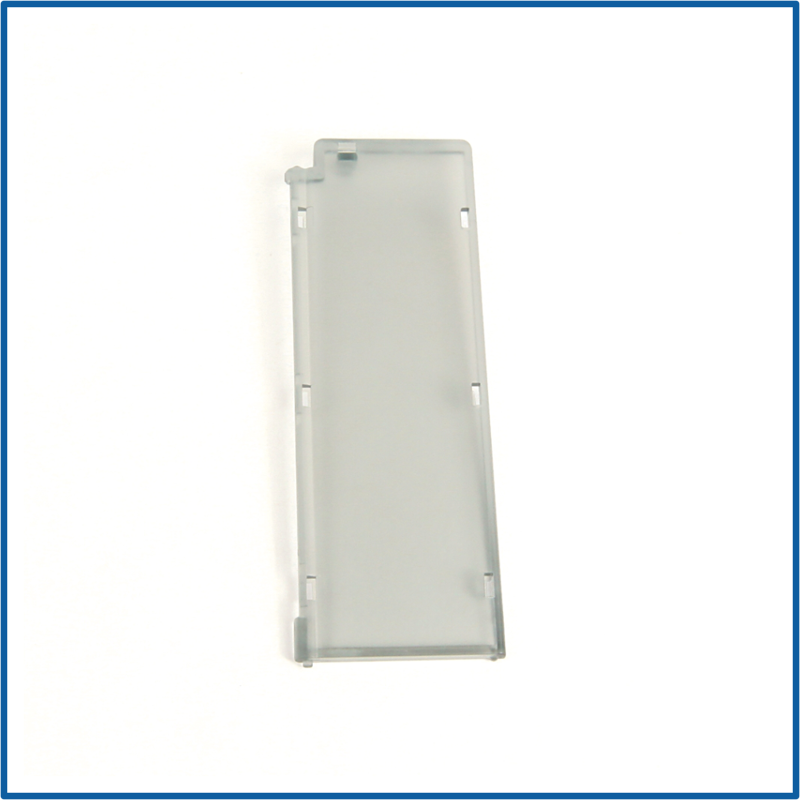

The 1769-RD is a replacement door kit for CompactLogix modules that covers and protects the controller's front panel.
It serves to protect the module's internal components from dust, dirt, and inadvertent touch.
This kit comprises two 1-slot width doors, which are ideal for replacing damaged or missing doors on compatible CompactLogix machines.
Compatibility: Supports 1769 CompactLogix controller modules.
Kits come with two doors each.
Slot Width: One slot width.
The purpose is to protect the module interface while still maintaining the enclosure's integrity.
Certification: GOST and KC compliance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Part Number: 1769-RD.
Manufacturer: Allen-Bradley.
Compatible Systems: CompactLogix 1769 series.
Slot Width: 1 slot.
Doors per Kit: 2 per kit.
Material: High-strength plastic (UL94-V0).
Dimensions: 96.5mm x 12.7mm x 132mm (3.8" x 0.5" x 5.2").
Weight (per door): 136g (0.3 lbs).
Operating Temperature Range: -20°C to 60°C (-4°F to 140°F).
Storage Temperature Range: -40°C to 85°C (-40°F to 185°F).
Environmental Protection: IP20 (protected from dust and accidental contact).
Product Origin: USA.
Warranty: 12 months.
