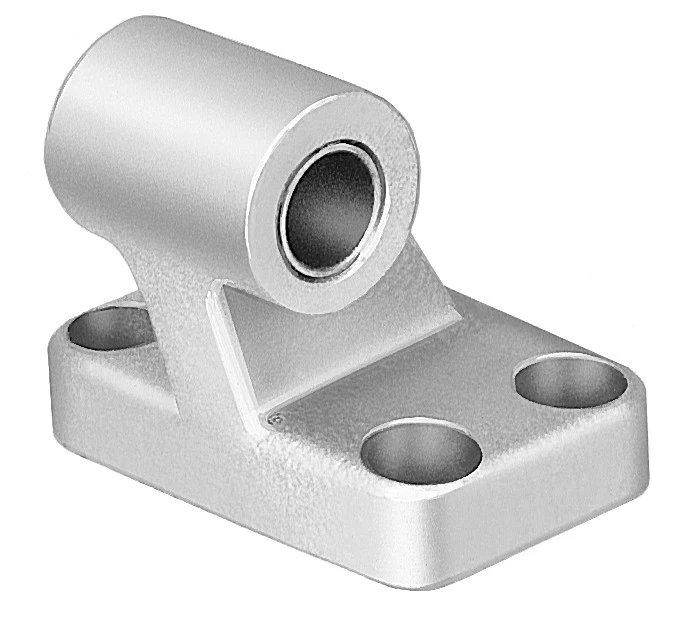

Standards-based cylinders DSBF-C, Accessories, Clevis foot, CRLNG-125

Specifications • Standards-based cylinders DSBF-C, to ISO 15552, Clean Design • Accessories, Clevis foot • Size 125 • Based on standard ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) • Mounting position optional • Corrosion resistance class CRC 4 - Very high corrosion stress • LABS (PWIS) conformity VDMA24364-B2-L • Suitability for the production of Li-ion batteries Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils • Ambient temperature -40 °C ... 80 °C • Product weight 2539 g • Note on materials RoHS-compliant • Material mounting Electropolished, High-alloy steel • Material bearing Polymer
