VG M12-1/K68, Cable glands, straight, M 12, Polyamide 6
SKU: 1772280000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

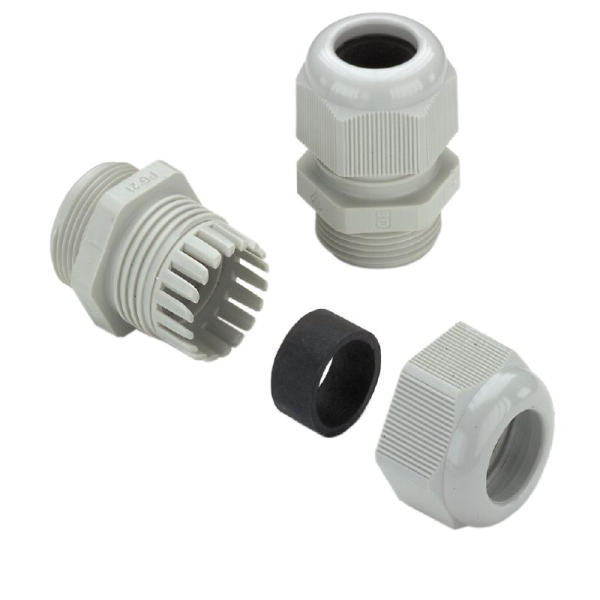

High-quality plastic cable gland for common industrial applications, the VG M12-1/K68 (1772280000).
This cable gland offers superior protection against environmental elements by guaranteeing a safe and dependable cable entry into electrical enclosures.
Longevity and strong performance are provided by its tough construction from polyamide 6.
Because of its multiple protection standard design, the VG M12-1/K68 is appropriate for a wide range of applications were protecting against dust and water ingress is crucial.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Component: Cable gland.
Material: Polyamide 6.
Thread Size: M12 x 1.5.
Colour: Grey.
Protection Class: IP54, IP66, IP67, IP68 (up to 5 bar for 30 minutes).
Cable Diameter Range: 3 mm to 6.5 mm.
Dimensions:
Height: 22.5 mm.
Length: 30.5 mm.
Weight: 3.5 g.
Temperature Range: -40°C to +100°C.
Installation:
Suitable for use with sealing ring for IP66 applications.
Without sealing ring, only IP54 is possible.
Standards:
REACH conforms.
RoHS conforms.
