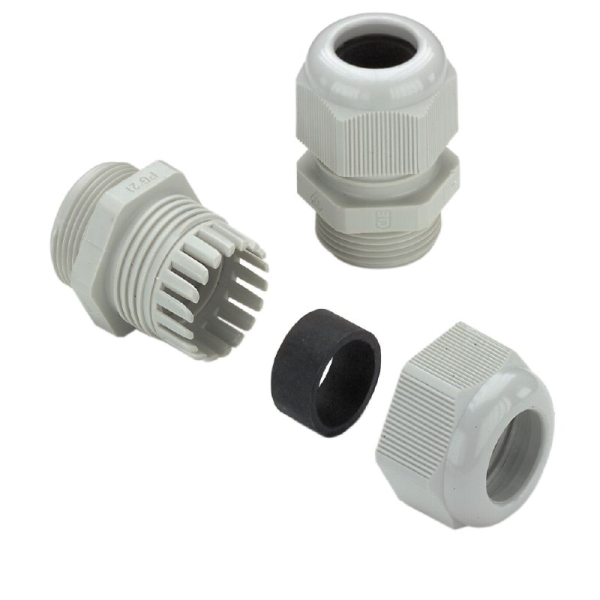

VG M20-1/K68, Cable glands, straight, M 20
SKU: 1772300000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Weidmüller's VG M20-1/K68 cable gland is an excellent product meant for common industrial uses.
This model is among the many cable entry systems and parts that Weidmüller offers; they are renowned for their dependability and robustness in a variety of settings.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: VG M20-1/K68.
Item Number: 1772300000.
Type: Standard plastic cable gland.
Thread Type: M20.
Cable Diameter Range:
Minimum: 6 mm.
Maximum: 12 mm.
Ingress Protection:
IP54 (without sealing ring).
IP66, IP67, IP68 (with sealing ring, up to 5 bar for 30 minutes).
Material: Polyamide 6.
Dimensions:
Height: 29.5 mm.
Length: 39.5 mm.
Net Weight: 11.04 g.
Temperature Range: Operating: -40°C to +100°C.
Torque:
Clamping: 3.5 Nm to 4.5 Nm.
Locking: 3 Nm to 4 Nm.
Compliance:
REACH Conformity: Yes.
RoHS Conformity: Yes.
