VG M50 - K 68, Cable glands, straight, M 50
SKU: 1772340000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

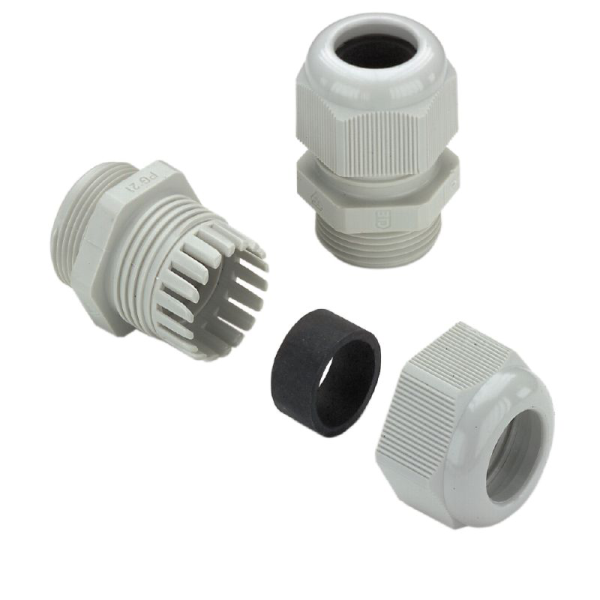

For industrial applications, the sturdy Weidmüller VG M50 - K 68 cable gland ensures dependable and safe cable entry.
This type is a member of the VG series from Weidmüller, which is renowned for its robust and high-quality parts.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: VG M50 - K 68.
Item Number: 1772340000.
Type: Standard plastic cable gland.
Thread Type: M50.
Cable Diameter Range:
Minimum: 30 mm.
Maximum: 38 mm.
Ingress Protection:
IP54 (without sealing ring).
IP66, IP67, IP68 (with sealing ring, up to 5 bar for 30 minutes).
Material: Polyamide 6.
Dimensions:
Height: 53 mm.
Length: 71 mm.
Net Weight: 94.6 g.
Temperature Range: Operating: -40°C to +100°C.
Torque:
Clamping: 8 Nm.
Locking: 7.5 Nm to 8.5 Nm.
Compliance:
REACH Conformity: Yes.
RoHS Conformity: Yes.
