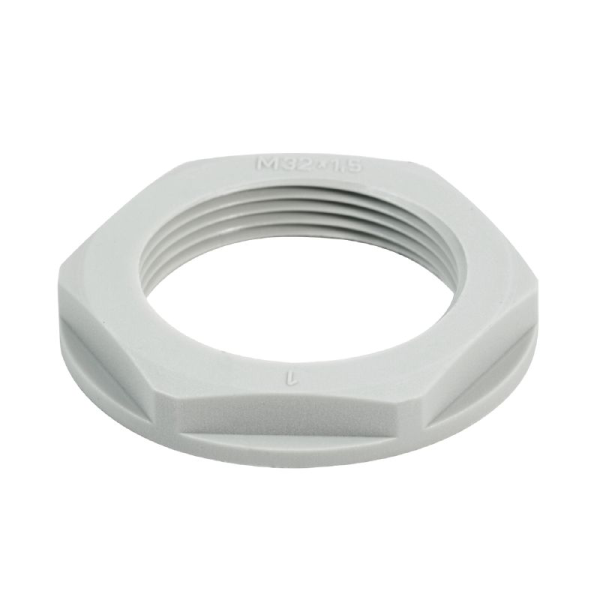

SKMU M32 - K GR
SKU: 1772480000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The product line is completed by plugs, pressure compensation components, adaptors, and matching accessories like locknuts, sealing rings, flat washers, and earthing rings, in addition to cable glands for a variety of applications.
If there isn't a threaded hole accessible, use it to secure cable glands and accessories.
Featuring a circumferential collar to shield the substrate from harm while being installed.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: SKMU PA (plastic locknut), Locknut.
Quantity: 100.
Height: 7 mm.
Operating temperature: -40 °C...100 °C.
AF size: 41 mm.
Cable glands: M 32.
External thread: M 32.
No Halogen.
Internal thread: M 32.
Length of thread: 7 mm.
Material: Polyamide 6 (PA6 - GF30).
O.D.: 47.36 mm.
Pitch of thread: 1.5 mm.
No Silicone.
Thickness: 7 mm.
UL 94 flammability rating: HB.
