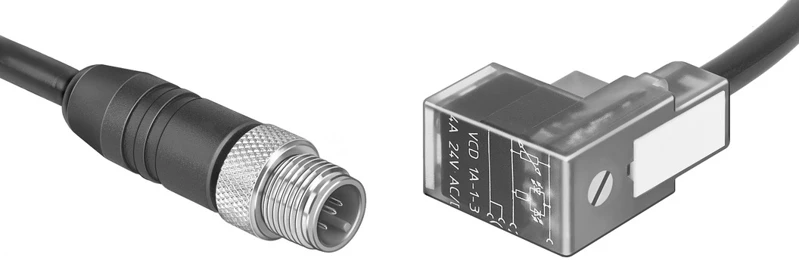

Plug socket with cable, KMEB-2-24-M12-0,5-LED

Specifications • Valve terminals VTSA • Accessories – Control block with safety function for VTSA/VTSA-F • Plug socket with cable • Switching position indicator LED • Type of mounting On solenoid valve via M2.5 central screw • Mounting position optional • Electrical connection 5-pin, Angled socket, Type C, To DIN EN 175301-803 • Nominal operating voltage DC 24 V • Protective conductor connection Available • Cable length 0.5 m • Cable diameter 4.6 mm • Cable structure 3 x 0.5 mm² • Degree of protection IP65, To IEC 60529 • Ambient temperature -5 °C ... 50 °C
