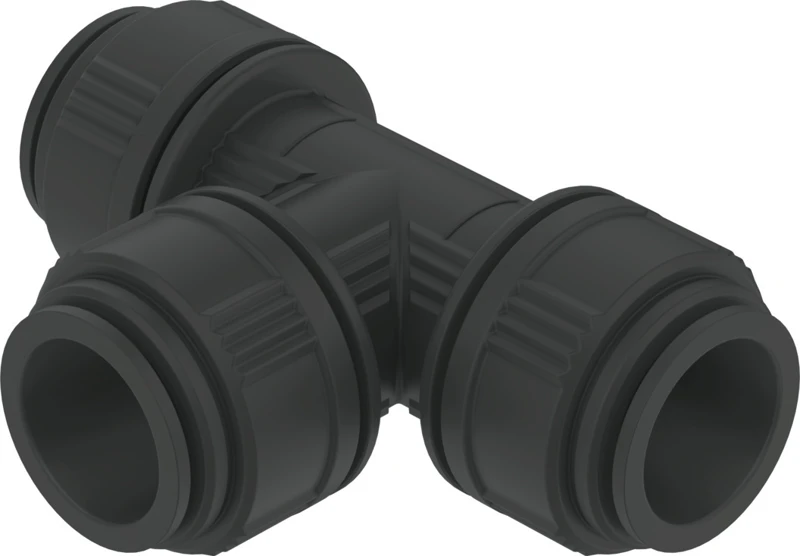

Push-in T-connector, CQT-12

Specifications • Push-in T-connector CQT • Nominal size 8.65 mm • Mounting position optional • Size of pack 1 • Design Push-pull principle • Operating pressure complete temperature range -0.95 bar ... 7 bar • Temperature-dependent operating pressure -0.95 bar ... 15 bar • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364 zone III • Suitable for use with food See supplementary material information • Ambient temperature -25 °C ... 70 °C • Pneumatic connection, port 1 For pipe/tubing outside diameter of 12 mm • Pneumatic connection, port 2 For pipe/tubing outside diameter of 12 mm
