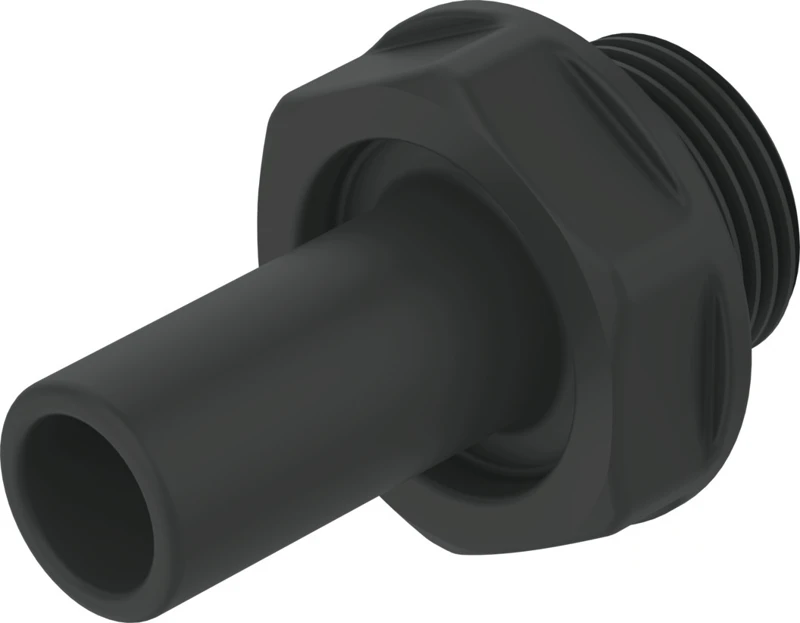

Push-in fitting, CQ-3/4-22H

Specifications • Push-in fitting CQ-...H, With push-in sleeve and sealing ring • Nominal size 17 mm • Type of seal on screwed plug Sealing ring • Mounting position optional • Size of pack 1 • Design Push-pull principle • Operating pressure complete temperature range -0.95 bar ... 7 bar • Temperature-dependent operating pressure -0.95 bar ... 15 bar • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364 zone III • Suitable for use with food See supplementary material information • Ambient temperature -25 °C ... 70 °C • Pneumatic connection, port 1 Male thread G3/4 • Pneumatic connection, port 2 Push-in sleeve CQ-22
