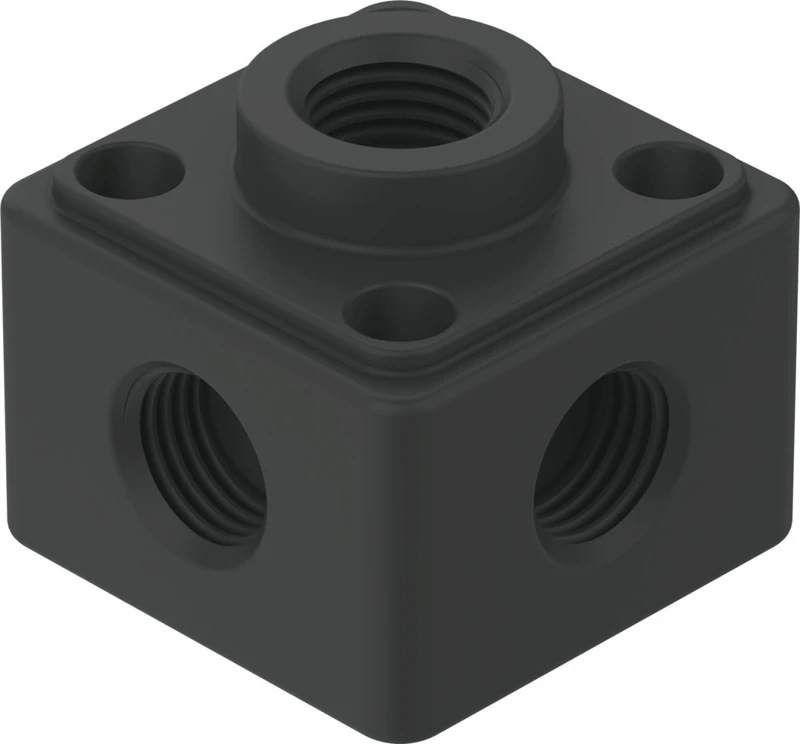

Distributor, CQD-12/15/1 8/22

Specifications • Distributor CQD, With 3 blanking plugs • Nominal size 18.6 mm • Mounting position optional • Size of pack 1 • Operating pressure complete temperature range -0.95 bar ... 7 bar • Temperature-dependent operating pressure -0.95 bar ... 15 bar • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364 zone III • Media temperature -25 °C ... 75 °C • Ambient temperature -25 °C ... 70 °C • Pneumatic connection, port 1 Female thread G1/2 • Pneumatic connection, port 2 Female thread G1/2
