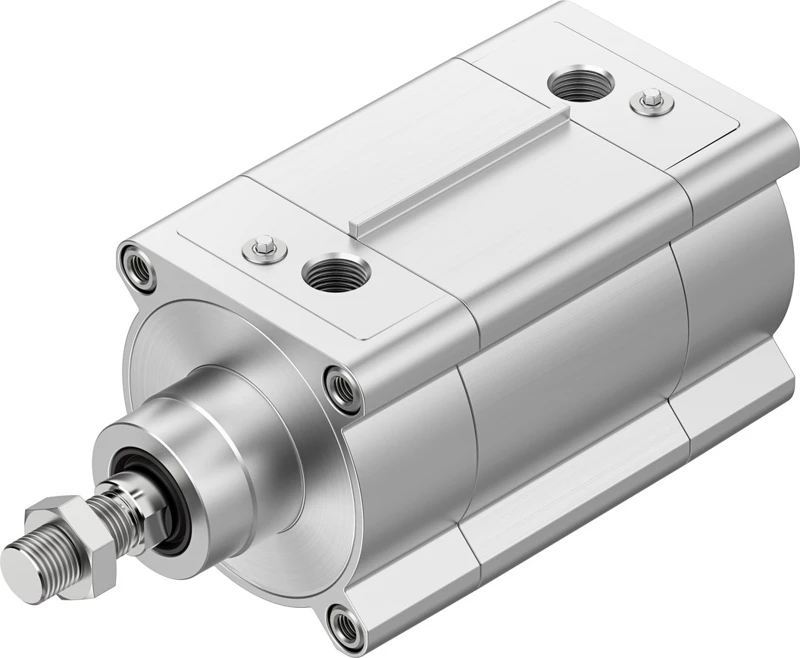

ISO cylinder, DSBF-C-100-50-PPVA-N3-R

Standards-based cylinder DSBF-C, to ISO 15552, clean design • Standards-based cylinders to ISO15552 (corresponds to the withdrawn standards ISO 6431, DIN ISO 6431, VDMA24562, NFE49003.1 and UNI 10290) • The standards-based cylinder is used wherever hygiene, ease of cleaning and resistance are important, predominantly in dry and splash zones in the food and packaging industry. • For hygiene reasons, the threads on the cylinder caps should be sealed with suitable plug screws • Resistant to conventional cleaning agents • Increased corrosion protection • Three types of cushioning available: Elastic cushioning: elastic cushioning rings/plates at both ends, PPS cushioning: pneumatic cushioning, self-adjusting at both ends, PPV cushioning: pneumatic cushioning, adjustable at both ends • The variants can be configured according to individual needs using a modular product system • Excellent flexibility thanks to a wide range of variants • Comprehensive range of mounting accessories for just about every type of installation • Contactless position sensing via proximity switches
