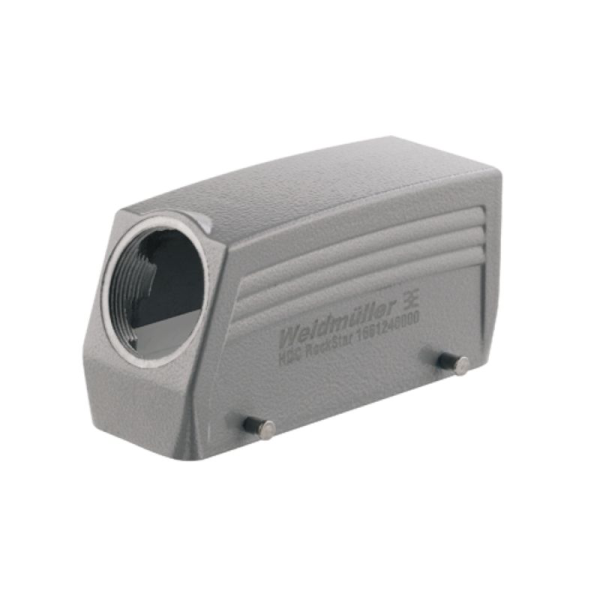

HDC 24B TSBU 1M32G
SKU: 1787750000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
HDC 24B TSBU 1M32G:
The HDC housings are fully protected by its die-cast metal and multi-layered surface sealing.
The beautifully built interlock mechanism is made of stainless steel.
This ensures a lengthy lifespan with strong corrosion and impact resistance.
The housing interlock system offers comprehensive safety.
Our exclusive, patent-pending spring mechanism gives the housing interlock a firm hold and guards against unintentional opening.
The laser marking enables easy and quick identification.
Each housing is permanently branded with a laser marking, allowing each product to be instantly identified and positioned.
Weidmüller RockStar® IP 65 / NEMA Type 4X housings are your top choice for industrial housings with IP 65 protection.
Buy currently uses Select Automation shop pricing and checkout.
SPECIFICATIONS DIMENSIONS AND WEIGHTS:
HEIGHT: 63 MM.
HEIGHT (INCHES): 2.48 INCH.
WIDTH: 59 MM.
WIDTH (INCHES): 2.323 INCH.
NET WEIGHT: 265 G.
TEMPERATURES:
LIMIT TEMPERATURE: -40 °C - 125 °C.
ENVIRONMENTAL PRODUCT COMPLIANCE:
REACH SVHC: LEAD 7439-92-1.
SCIP: D447EDFA-0214-4F34-B5BA-82EAE491B46A.
CHEMICAL RESISTANCE:
SUBSTANCE: ACETONE.
CHEMICAL RESISTANCE: CONDITIONALLY RESISTANT.
SUBSTANCE: DRILLING OIL.
CHEMICAL RESISTANCE: RESISTANT.
SUBSTANCE: DIESEL.
CHEMICAL RESISTANCE: RESISTANT.
SUBSTANCE: ETHYL ALCOHOL.
CHEMICAL RESISTANCE: RESISTANT.
SUBSTANCE: TRANSMISSION OIL.
CHEMICAL RESISTANCE: RESISTANT.
SUBSTANCE: HYDRAULIC OIL.
CHEMICAL RESISTANCE: RESISTANT.
SUBSTANCE: COOLANT.
CHEMICAL RESISTANCE: RESISTANT.
SUBSTANCE: PETROLEUM BENZINE.
CHEMICAL RESISTANCE: RESISTANT.
SUBSTANCE: SWEAT.
CHEMICAL RESISTANCE: RESISTANT.
SUBSTANCE: PREMIUM GASOLINE.
CHEMICAL RESISTANCE: CONDITIONALLY RESISTANT.
SUBSTANCE: WATER.
CHEMICAL RESISTANCE: RESISTANT.
SUBSTANCE: UV.
CHEMICAL RESISTANCE: UNSTABLE.
SUBSTANCE: OZONE.
CHEMICAL RESISTANCE: UNSTABLE.
ESHOP_FILTER_01_02_CONNECTORS:
PRODUCT TYPE: ENCLOSURES.
DIMENSIONS:
CABLE ENTRY: W. THREAD.
HEIGHT OF HOUSING B: 63 MM.
TOTAL LENGTH HOUSING: 120 MM.
WIDTH HOUSING C: 43 MM.
GENERAL DATA:
EMC HOUSINGS: NO.
HOUSING MAIN MATERIAL: DIECAST ALUMINIUM.
MATERIAL OF LOCKING ELEMENT: STAINLESS STEEL, RUST-PROOF.
PROTECTION DEGREE: IP65 (IN PLUGGED CONDITION).
SURFACE FINISH: POWDER COATING.
VERSION:
BG: 8.
Cable entry: w. thread.
CLAMP VERSION: SIDE-LOCKING CLAMP.
COLOUR (RAL): RAL 7035.
DESIGN: Standard.
Design of housing: Cable entry from side, Plug housing.
DESIGN OF LOCKING SYSTEM: Side-locking clamp on lower side.
INTERNAL THREAD: M 32.
NUMBER OF CABLE ENTRY ON TOP: 0.
NUMBER OF CABLE ENTRY SIDEWAYS: 1.
SIZE: 8.
Size of cable entries: M 32.
SUITABLE FOR MODUPLUG®: NO.
TOP PART/BOTTOM PART/LID: UPPER PART.
TYPE: PLUG.
