HDC 24B TSLU 1M32G
SKU: 1787790000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

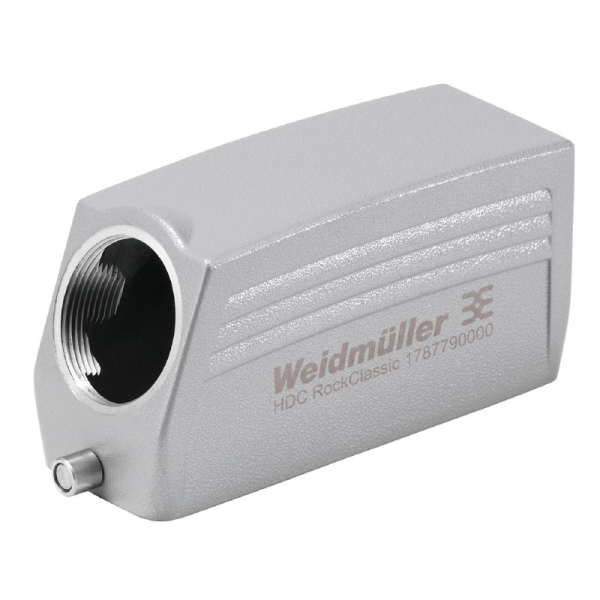

HDC 24B TSLU 1M32G:
The HDC housings are fully protected by its die-cast metal and multi-layered surface sealing.
The beautifully built interlock mechanism is made of stainless steel.
This ensures a lengthy lifespan with strong corrosion and impact resistance.
The housing interlock system offers comprehensive safety.
Our exclusive, patent-pending spring mechanism gives the housing interlock a firm hold and guards against unintentional opening.
The laser marking enables easy and quick identification.
Each housing is permanently branded with a laser marking, allowing each product to be instantly identified and positioned.
Weidmüller RockStar® IP 65 / NEMA Type 4X housings are your top choice for industrial housings with IP 65 protection.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Height: 61 mm.
Height (inches): 2.402 inch.
Width: 46 mm.
Width (inches): 1.811 inch.
Net weight: 272 g.
Temperatures:
Limit temperature: -40 °C... 125 °C.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: d447edfa-0214-4f34-b5ba-82eae491b46a.
Chemical resistance:
Substance: Acetone.
Chemical resistance: Conditionally resistant.
Substance: Drilling oil.
Chemical resistance: Resistant.
Substance: Diesel.
Chemical resistance: Resistant.
Substance: Ethyl alcohol.
Chemical resistance: Resistant.
Substance: Transmission oil.
Chemical resistance: Resistant.
Substance: Hydraulic oil.
Chemical resistance: Resistant.
Substance: Coolant.
Chemical resistance: Resistant.
Substance: Petroleum benzine.
Chemical resistance: Resistant.
Substance: Sweat.
Chemical resistance: Resistant.
Substance: Premium gasoline.
Chemical resistance: Conditionally resistant.
Substance: Water.
Chemical resistance: Resistant.
Substance: UV.
Chemical resistance: Unstable.
Substance: Ozone.
Chemical resistance: Unstable.
eshop_Filter_01_02_Connectors:
Product type: Enclosures.
Dimensions:
Cable entry: w. thread.
Height of housing B: 63 mm.
Total length housing: 120 mm.
Width housing C: 43 mm.
General data:
EMC housings: No.
Housing main material: diecast aluminium.
Material of locking element: Stainless steel, rust-proof.
Protection degree: IP65 (in plugged condition).
Surface finish: Powder coating.
Version:
BG: 8.
Cable entry: w. thread.
Clamp version: End-locking clamp.
Colour (RAL): RAL 7035.
Design: Standard.
Design of housing: Cable entry from side.
Plug housing.
Design of locking system: End-locking clamp, lower side.
Internal thread: M 32.
Number of cable entry on top: 0.
Number of cable entry sideways: 1.
Size: 8.
Size of cable entries: M 32.
Suitable for ModuPlug®: No.
Top part/bottom part/lid: upper part.
Type: Plug.
