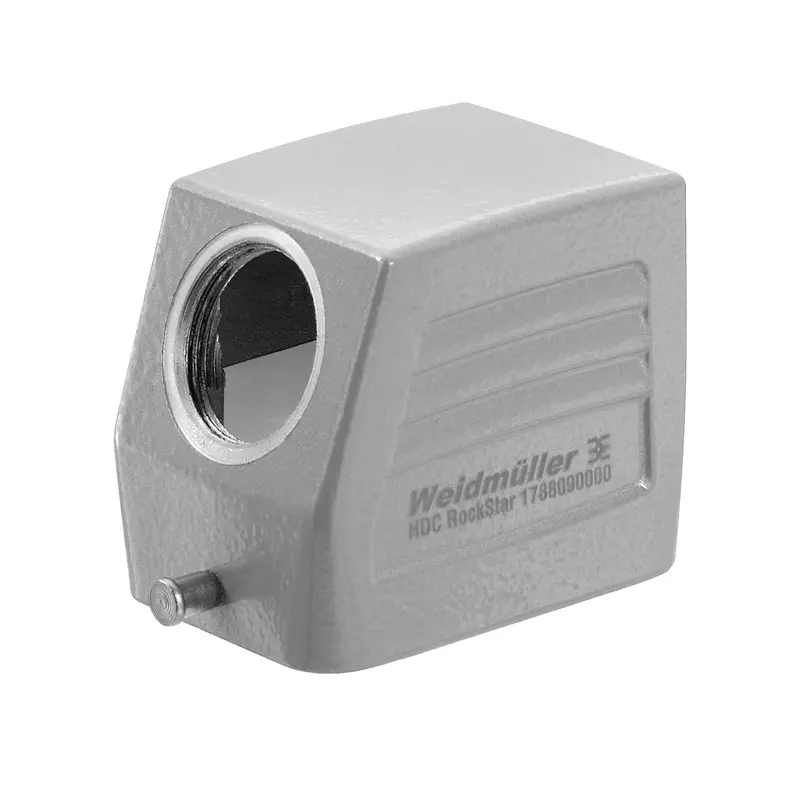

HDC 06B TSLU 1M20G
SKU: 1788100000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
HDC 06B TSLU 1M20G:
The specific die-cast alloy and multi-layered surface sealing give comprehensive protection for the HDC housings.
The intelligently constructed interlock system is made of stainless steel.
This ensures a lengthy lifespan with strong corrosion and impact resistance.
The housing interlock system offers comprehensive safety.
Our innovative, proprietary spring system secures the housing interlock and prevents accidental opening.
The laser marking enables easy and quick identification.
Each housing is permanently branded with a laser marking, allowing each product to be instantly identified and positioned.
Weidmüller RockStar® IP 65 / NEMA Type 4X housings are your top choice for industrial housings with IP 65 protection.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Height: 52 mm.
Height (inches): 2.047 inch.
Width: 43 mm.
Width (inches): 1.693 inch.
Net weight: 120 g.
Temperatures:
Limit temperature: -40 °C - 125 °C.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: d447edfa-0214-4f34-b5ba-82eae491b46a.
Chemical resistance:
Substance: Acetone.
Chemical resistance: Conditionally resistant.
Substance: Drilling oil.
Chemical resistance: Resistant.
Substance: Diesel.
Chemical resistance: Resistant.
Substance: Ethyl alcohol.
Chemical resistance: Resistant.
Substance: Transmission oil.
Chemical resistance: Resistant.
Substance: Hydraulic oil.
Chemical resistance: Resistant.
Substance: Coolant.
Chemical resistance: Resistant.
Substance: Petroleum benzine.
Chemical resistance: Resistant.
Substance: Sweat.
Chemical resistance: Resistant.
Substance: Premium gasoline.
Chemical resistance: Conditionally resistant.
Substance: Water.
Chemical resistance: Resistant.
Substance: UV.
Chemical resistance: Unstable.
Substance: Ozone.
Chemical resistance: Unstable.
Dimensions:
Cable entry: w. thread.
Height of housing B: 52 mm.
Total length housing: 60 mm.
Width housing C: 43 mm.
General data:
EMC housings: No.
Housing main material: diecast aluminium.
Material of locking element: Stainless steel, rust-proof.
Protection degree: IP65 (in plugged condition).
Surface finish: Powder coating.
Tightening torque: 1.2 Nm.
Version:
BG: 3.
Cable entry: w. thread.
Clamp version: End-locking clamp.
Colour (RAL): RAL 7035.
Design: Standard.
Design of housing: Cable entry from side, Plug housing.
Design of locking system: End-locking clamp, lower side.
Internal thread: M 20.
Number of cable entry on top: 0.
Number of cable entry sideways: 1.
Size: 3.
Size of cable entries: M 20.
Suitable for ModuPlug®: No.
Tightening torque: 1.2 Nm.
Top part/bottom part/lid: upper part.
Type: Plug.
