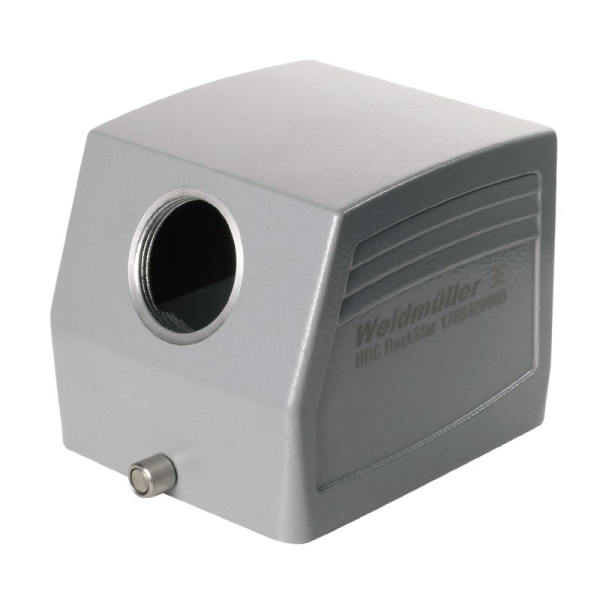

HDC 32B TSLU 1M32G
SKU: 1788420000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
HDC 32B TSLU 1M32G:
The specific die-cast alloy and multi-layered surface sealing give comprehensive protection for the HDC housings.
The beautifully built interlock mechanism is made of stainless steel.
This ensures a long lifespan with strong resistance to corrosion and damage.
The housing interlock system offers comprehensive safety.
Our proprietary spring system secures the housing interlock and prevents it from being accidentally opened.
The laser marking enables easy and quick identification.
Laser-marked housings provide for easy product identification and positioning.
Weidmüller RockStar® IP 65 / NEMA Type 4X housings are your top choice for industrial housings with IP 65 protection.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Depth: 108.5 mm.
Depth (inches): 4.272 inch.
Height: 79 mm.
Height (inches): 3.11 inch.
Width: 82.5 mm.
Width (inches): 3.248 inch.
Net weight: 393 g.
Temperatures:
Limit temperature: -40 °C... 125 °C.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: d447edfa-0214-4f34-b5ba-82eae491b46a.
Chemical resistance:
Substance: Acetone.
Chemical resistance: Conditionally resistant.
Substance: Drilling oil.
Chemical resistance: Resistant.
Substance: Diesel.
Chemical resistance: Resistant.
Substance: Ethyl alcohol.
Chemical resistance: Resistant.
Substance: Transmission oil.
Chemical resistance: Resistant.
Substance: Hydraulic oil.
Chemical resistance: Resistant.
Substance: Coolant.
Chemical resistance: Resistant.
Substance: Petroleum benzine.
Chemical resistance: Resistant.
Substance: Sweat.
Chemical resistance: Resistant.
Substance: Premium gasoline.
Chemical resistance: Conditionally resistant.
Substance: Water.
Chemical resistance: Resistant.
Substance: UV.
Chemical resistance: Unstable.
Substance: Ozone.
Chemical resistance: Unstable.
Dimensions:
Cable entry: w. thread.
Height of housing B: 79 mm.
Total length housing: 94 mm.
Width housing C: 82.5 mm.
General data:
EMC housings: No.
Housing main material: diecast aluminium.
Material of locking element: Stainless steel, rust-proof.
Protection degree: IP65 (in plugged condition).
Surface finish: Powder coating.
Tightening torque: 2 Nm.
Version:
BG: 10.
Clamp version: End-locking clamp.
Colour (RAL): RAL 7035.
Design: Standard.
Design of housing: Cable entry from side, Plug housing.
Design of locking system: End-locking clamp, lower side.
Internal thread: M 32.
Number of cable entry on top: 0.
Number of cable entry sideways: 1
Size: 10.
Size of cable entries: M 32.
Suitable for ModuPlug®: Yes.
Tightening torque: 2 Nm.
Top part/bottom part/lid: Upper part.
Type: Plug.
