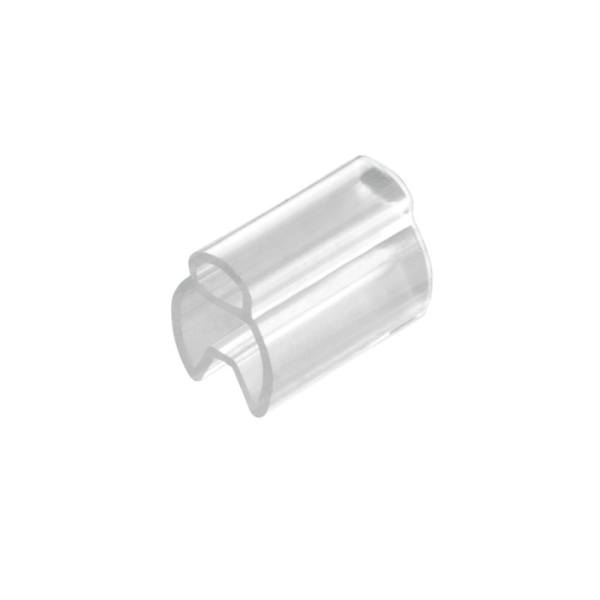

TM 203/12 V0
SKU: 1798510000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
TM 203/12 V0:
Our wide selection of TM sleeves is ideal for a variety of applications.
They have a wide range of uses, from thin conductors to cables with enormous exterior diameters.
This line of printed inlay tags provides the highest level of defense against external factors.
TM sleeves enable installation flexibility.
Ideal safeguarding for printed inlay tags.
Broad range of uses for cables and conductors.
Every cross-section uses the same sort of tag.
TMX 30 cable tie mount (4.6 mm wide).
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 5 mm.
Depth (inches): 0.197 inch.
Height: 12 mm.
Height (inches): 0.472 inch.
Width: 5 mm.
Width (inches): 0.197 inch.
Net weight: 0.418 g.
Temperatures:
Operating temperature range: -40 - 80 °C.
Environmental Product Compliance:
REACH SVHC: /.
General data:
Colour: Transparent.
Material: PVC.
Operating temperature range: -40 - 80 °C.
Operating temperature range, max.: 80 °C.
Operating temperature range, min.: -40 °C.
Recommended industries: Transportation, Machinery.
Type of printing: neutral.
UL 94 flammability rating: V-0.
Width: 5 mm.
Conductor and cable markers:
Conductor cross-section, max.: 10 mm².
Conductor cross-section, min.: 2.5 mm².
Conductor O.D.: 4 - 6 mm.
Conductor O.D., max.: 6 mm.
Conductor O.D., min.: 4 mm.
Cross-section for connected wire: 2.5 - 10 mm².
