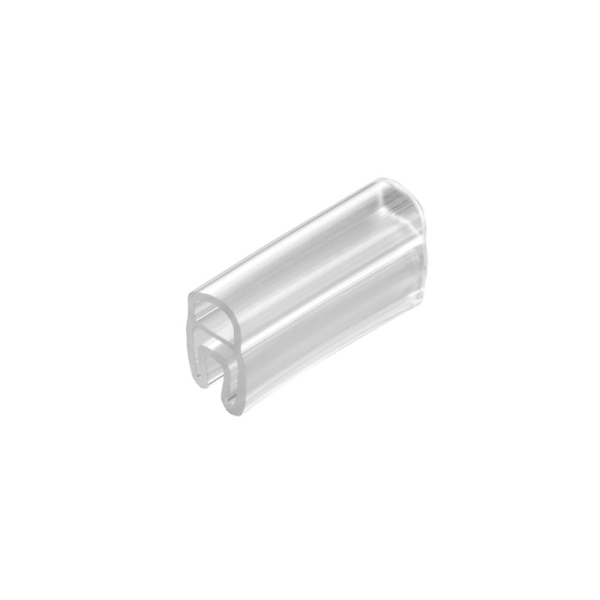

TM 202/15 V0
SKU: 1798540000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Our wide selection of TM sleeves can be used for a variety of tasks.
They have a wide range of uses, from thin conductors to cables with enormous exterior diameters.
This line of printed inlay tags provides the highest level of defence against external factors.
TM sleeves enable installation flexibility.
Buy currently uses Select Automation shop pricing and checkout.
Feature:
Optimum protection for printed inlay tags.
Wide range of applications for conductors and cables.
One tag type for all cross-sections.
TMX 30 for mounting with cable ties (width 4.6 mm).
Specifications:
Version: TM, Socket x 5 mm, PVC.
Quantity: 1000.
Depth: 5 mm.
Height: 15 mm.
Width: 5 mm.
Operating temperature range: -40...80 °C.
Colour: Transparent.
Material: PVC.
Type of printing: neutral.
UL 94 flammability rating: V-0.
Conductor and cable markers:
Conductor O.D.: 2 - 4 mm.
Conductor O.D., max.: 4 mm.
Conductor O.D., min.: 2 mm.
Conductor cross-section, max.: 2.5 mm².
Conductor cross-section, min.: 0.5 mm².
Cross-section for connected wire: 0.5 – 2.5 mm².
