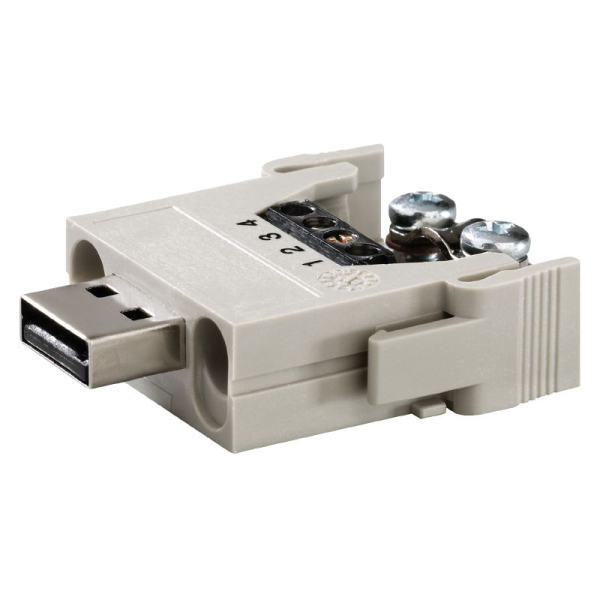

HDC CM BUS 4SS
SKU: 1814310000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
HDC CM BUS 4SS:
When it comes to transmitting delicate signals in heavy-duty connectors, the Concept bus system is ideal.
Dimensions and weights:
Height: 43 mm.
Height (inches): 1.693 inch.
Width: 11.4 mm.
Width (inches): 0.449 inch.
Length: 34 mm.
Length (inches): 1.339 inch.
Net weight: 17.8 g.
Buy currently uses Select Automation shop pricing and checkout.
Temperatures:
Limit temperature: -20 °C... 85 °C.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1, Potassium perfluoro butane sulfonate 29420-49-3.
SCIP: e98b2b24-ba23-41bf-8d19-0dda3647412f.
Concept Pneumatic module:
Colour: beige.
Dimensions:
Height of socket: 43 mm.
Total length base: 34 mm.
Width: 11.4 mm.
General data:
Colour: beige.
Insulating material: PC glass-fibre reinforced (UL-listed and railway-certified).
Low smoke acc. DIN EN 45545-2: Yes.
Material: Polycarbonate.
Number of poles: 4
Rated current (DIN EN 61984): 1 A.
Rated impulse voltage (DIN EN 61984): 0.8 kV.
Rated voltage (DIN EN 61984): 32 V.
Series: ConCept module.
Type: Pin.
Type of connection: Screw connection.
Connection data PE:
Tightening torque, max. PE connection: 0.6 Nm.
Tightening torque, min. PE connection: 0.5 Nm.
Version:
Material: Polycarbonate.
Stripping length, rated connection: 5 mm.
Type of connection: Screw connection.
Wire connection cross section AWG, max.: AWG 16.
