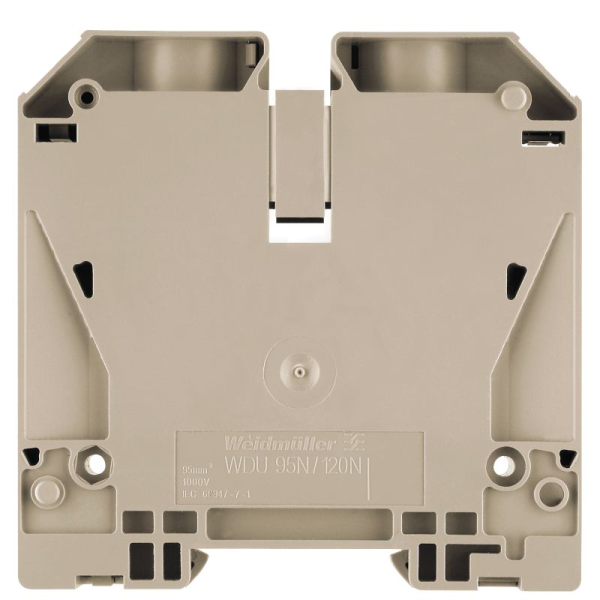

WDU 95N/120N

Varied product assortment with wide clamping range: Our terminal blocks with clamping yoke technology are available in both standard and compact designs. The compact design covers wire cross-sections from 0.05 mm2 to 150 mm2 and helps save space in the panel. The standard version covers conductor cross sections of up to 240 mm2. The identical contours of the terminal blocks make configuration easier and reduces the quantity of accessories required. Specifications: Version: Feed-through terminal block, Screw connection. Quantity: 5. Depth: 90 mm. Depth including DIN rail: 91 mm. Height: 91 mm. Width: 27 mm. Storage temperature: -25 °C...55 °C. Continuous operating temp., min.: -60 °C Continuous operating temp., max.: 130 °C. Material: Wemid. Color: dark beige. UL 94 flammability rating: V-0. Installation advice: Direct mounting. Number of similar terminals: 1. Open sides: closed. Type of mounting: Snap-on. Standards: IEC 60947-7-1. System specifications: No End cover plate required. Number of potentials: 1. Number of levels: 1. Number of clamping points per level: 2. Number of potentials per tier: 1. No Levels cross-connected internally. No PE connection. Rail: TS 35. No N-function. No PE function. PEN function. Rating data: Rated cross-section: 120 mm². Rated voltage: 1,000 V. Rated DC voltage: 1,000 V. Rated current: 269 A. Current at maximum wires: 290 A. Volume resistance according to IEC 60947-7-x: 0.12 mΩ. Rated impulse withstand voltage: 8 kV. Power loss in accordance with IEC 60947-7-x: 8.61 W. Pollution severity: 3.
