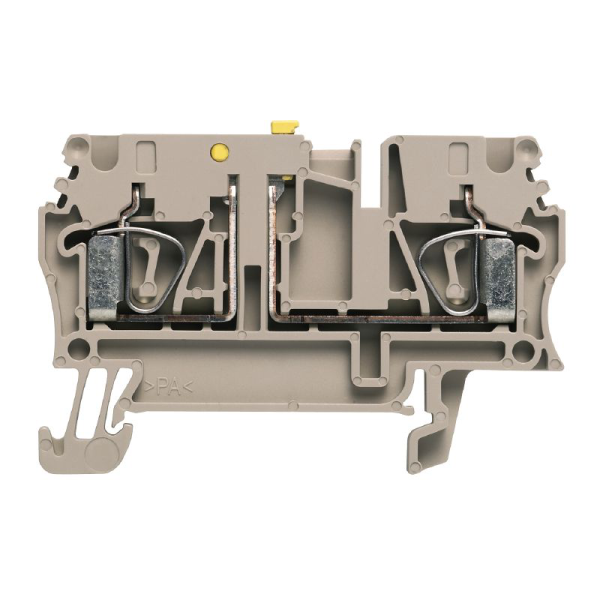

ZTR 2.5
SKU: 1831280000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For testing and safety reasons, it makes sense in some applications to add a test point or a disconnect element to the feed-through terminal.
Test-disconnect terminals are used to measure electric circuits when there is no voltage present.
Despite not measuring the clearance and creepage distance between disconnecting points in terms of dimensions, it is necessary to prove the stated rated impulse voltage strength.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: Test-disconnect terminal, Tension-clamp connection.
Quantity: 50.
Depth: 38.5 mm.
Depth including DIN rail: 41 mm.
Height: 59.5 mm.
Width: 5.1 mm.
Storage temperature: -25 °C...55 °C.
Continuous operating temp., min.: -50 °C.
Continuous operating temp., max.: 120 °C.
Material: Wemid.
Color: dark beige.
UL 94 flammability rating: V-0.
Installation advice: Direct mounting.
Number of similar terminals: 2.
Open sides: right.
Type of mounting: Snap-on.
Standards: IEC 60947-7-1.
System specifications:
End cover plate required.
Number of potentials: 1.
Number of levels: 1.
Number of clamping points per level: 2.
Number of potentials per tier: 1.
No Levels cross-connected internally.
No PE connection.
Rail: TS 35.
No N-function.
No PE function.
No PEN function.
Rating data:
Rated cross-section: 2.5 mm².
Rated voltage: 500 V.
Rated DC voltage: 500 V.
Rated current: 20 A.
Current at maximum wires: 20 A.
Volume resistance according to IEC 60947-7-x: 1.33 mΩ.
Rated impulse withstand voltage: 6 kV.
Power loss in accordance with IEC 60947-7-x: 0.77 W.
Pollution severity: 3.
