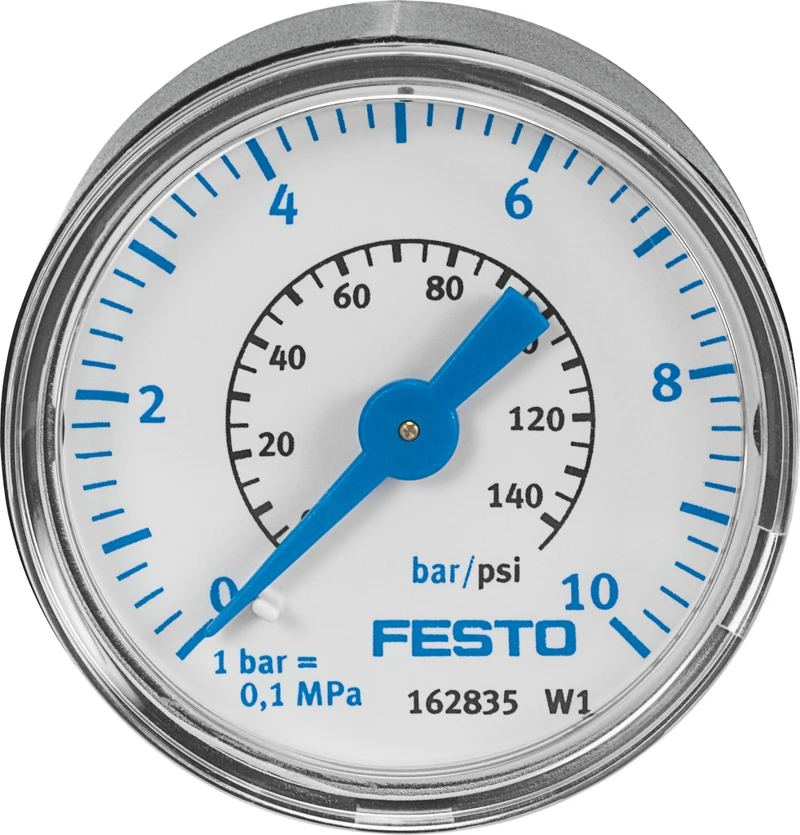

Pressure gauge, MA-23-10-R1/8
SKU: 183897
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pressure gauge MA
• Indicating range 0 bar ... 10 bar
• Indicating range 0 psi ... 145 psi
• Symbol 00991463
• Nominal size of pressure gauge 23
• Design Bourdon tube pressure gauge
• Type of mounting In-line installation
• Operating medium Inert gases, Neutral fluids
• Operating pressure 0 MPa ... 1 MPa
• Operating pressure 0 bar ... 10 bar
• Operating pressure 0 psi ... 145 psi
• Alternating load factor 0.6
• Measurement accuracy class 4
• Pneumatic connection R1/8
Buy currently uses Select Automation shop pricing and checkout.
Pressure gauge MA
• Pressure gauge to DIN EN 837-1 for front-panel or in-line installation with display range up to 16 bar or 230 psi.
• Designs based on DIN EN 837-1, available with red-green range
• Pneumatic connection via R, G or metric thread, push-in connector
• Display units bar, psi, MPa
