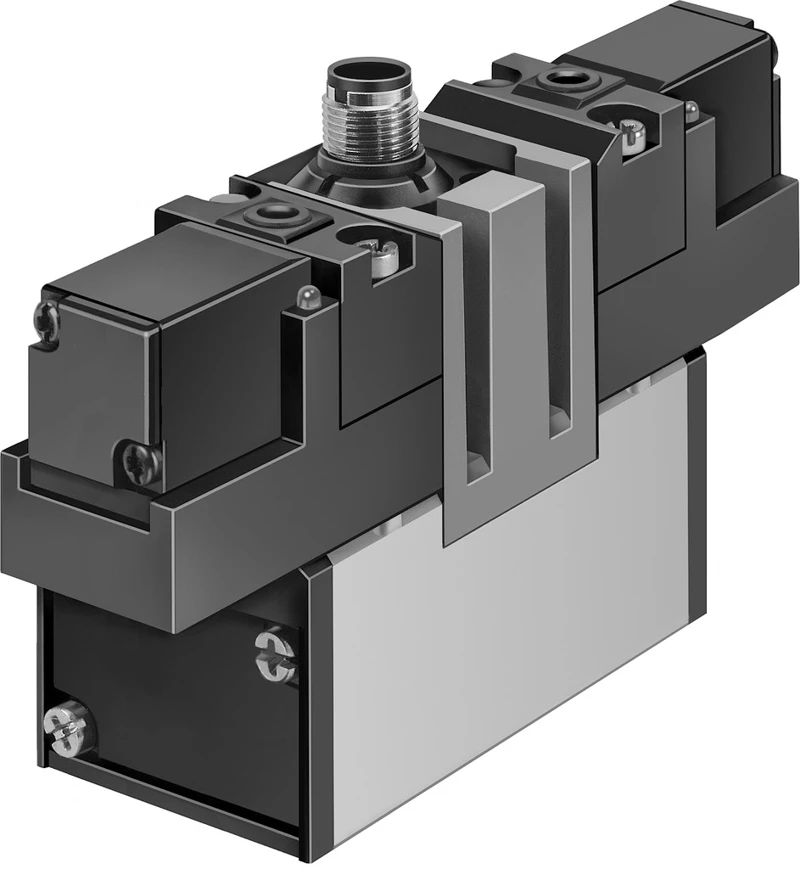

Solenoid valve, MEBH-5/3E-D-3-ZSR-C

Specifications • Standards-based valves to ISO 5599-1, central plug M12, 4-pin • Valve function 5/3 exhausted • Type of actuation Electric • Construction width 65 mm • Standard nominal flow rate (standardised to DIN 1343) 4600 l/min • Pneumatic working port Sub-base size 3 to ISO 5599-1, G1/2 • Operating voltage 24V DC • Operating pressure 0.3 MPa ... 1 MPa • Operating pressure 3 bar ... 10 bar • Design Piston gate valve • Type of reset Mechanical spring
