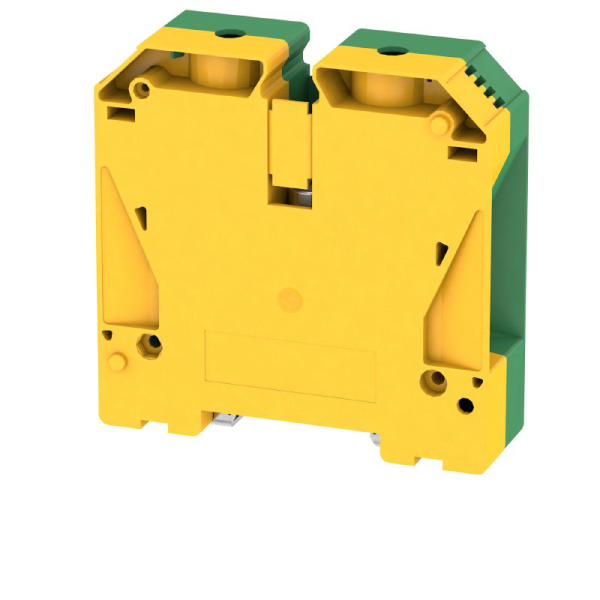

WPE 95N/120N
SKU: 1846030000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
In many applications, a protected feed through terminal block is utilized as an electrical conductor for safety reasons.
PE terminal blocks are used to create the mechanical and electrical connection between copper wires and the mounting support plate.
They have one or more points of contact where protective earth conductors can be connected to and/or split off.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: PE terminal, Screw connection.
Quantity: 5.
Depth: 90 mm.
Depth including DIN rail: 91 mm.
Height: 91 mm.
Width: 27 mm.
Storage temperature: -25 °C...55 °C.
Continuous operating temp., min: -60 °C.
Continuous operating temp., max: 130 °C.
Material: Wemid.
Color: green/yellow.
UL 94 flammability rating: V-0.
Interlock: for screw fixing.
Number of similar terminals: 1.
Open sides: closed.
Standards: IEC 60947-7-2.
System specifications:
No End cover plate required.
Number of potentials: 1.
Number of levels: 1.
Number of clamping points per level: 2.
Number of potentials per tier: 1.
No Levels cross-connected internally.
PE connection.
Rail: TS 35.
No N-function.
PE function.
PEN function.
PE rating data:
Rated short-time current: 11400 A (95 mm²).
Centre screw on PE terminals: M 5.
Tightening torque range for fixing screw: 3.0...4.0 Nm.
Rating data:
Rated cross-section: 95 mm².
Rated voltage to adjoining terminal: 1,000 V.
Rated DC voltage: 1,000 V.
Volume resistance according to IEC 60947-7-x: 0.14 mΩ.
Rated impulse withstand voltage to adjacent terminal: 8 kV.
Power loss in accordance with IEC 60947-7-x: 7.42 W.
Pollution severity: 3.
