SFX 9/24 MC NE GE V2
SKU: 1852460000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

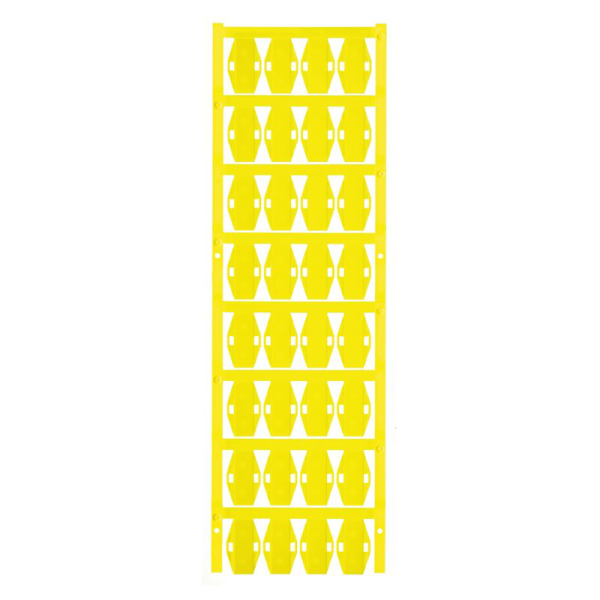

SFX 9/24 MC NE GE V2:
Halogen-free conductor and cable markings with a compact design are called SlimFix X.
The markers can be attached even after the conductor has been installed.
SlimFix is a recognized and certified marker type in traffic engineering.
The SF tool enables for simple installation, even with small markers.
substance devoid of halogens.
certified and authorized markers for use in traffic engineering, etc.
Cable ties are required for conductors having a cross section bigger than 16.0 mm².
Markers in the popular MultiCard format.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 0.8 mm.
Depth (inches): 0.031 inch.
Height: 24 mm.
Height (inches): 0.945 inch.
Width: 15 mm.
Width (inches): 0.591 inch.
Net weight: 0.7 g.
Temperatures:
Operating temperature range: -40...100 °C.
Environmental Product Compliance:
REACH SVHC: /.
General data:
Colour: yellow.
compatible printer: PRINTJET CONNECT.
Halogen: No.
Material: Polyamide 66.
Material colour according to resistance code: 4.
Number of markers per combination: 1 MultiCard = Conductor and cable markers.
Number of markers per packaging unit:
Form of supply: MultiCard.
Operating temperature range: -40...100 °C.
Operating temperature range, max.: 100 °C.
Operating temperature range, min.: -40 °C.
Recommended industries: Transportation, Machinery.
Size of labelling field: 23.9 x 9 mm.
Type of printing: neutral.
UL 94 flammability rating: V-2.
Version: Installation with cable ties.
Width: 15 mm.
Conductor and cable markers:
Conductor cross-section, max.: 500 mm².
Conductor cross-section, min.: 16 mm².
Conductor O.D.: 7 - 40 mm.
Conductor O.D., max.: 40 mm.
Conductor O.D., min.: 7 mm.
Cross-section for connected wire: 16 - 500 mm².
Halogen: No.
