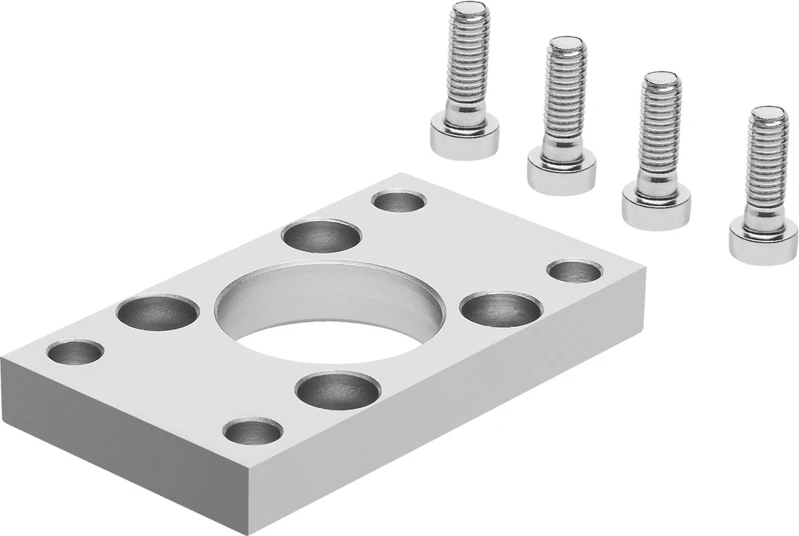

Standards-based cylinders DSBF-C, Accessories, Flange mounting, CRFNG-125

Specifications • Standards-based cylinders DSBF-C, to ISO 15552, Clean Design • Accessories, Flange mounting • Size 125 • Mounting position optional • Conforms to standard ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) • Corrosion resistance class CRC 4 - Very high corrosion stress • LABS (PWIS) conformity VDMA24364-B2-L • Suitability for the production of Li-ion batteries Metals with more than 5% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils • Ambient temperature -40 °C ... 150 °C • Product weight 3787 g • Material mounting High-alloy stainless steel • Material screws High-alloy stainless steel
