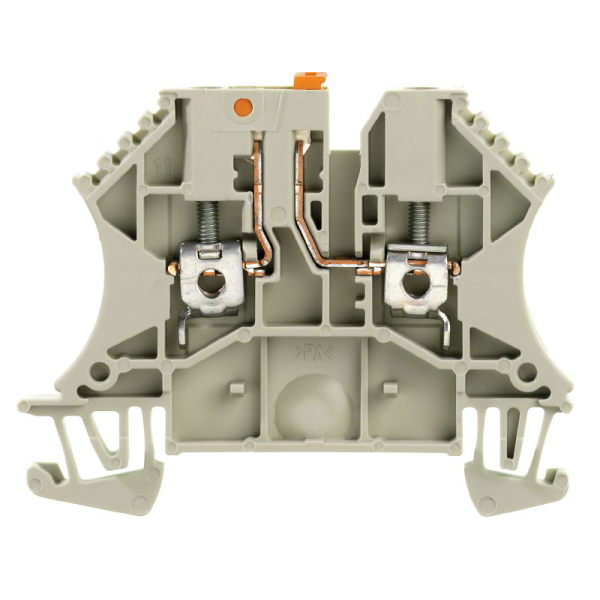

WTR 2.5
SKU: 1855610000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For testing and safety reasons, it makes sense in some applications to add a test point or a disconnect element to the feed-through terminal.
Test-disconnect terminals are used to measure electric circuits when there is no voltage present.
Although the clearance and creepage distance between disconnecting points are not measured in terms of dimensions, the stated rated impulse voltage strength needs to be proven.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: Test-disconnect terminal, Screw connection.
Quantity: 100.
Depth: 48 mm.
Depth including DIN rail: 49 mm.
Height: 60 mm.
Width: 5.1 mm.
Storage temperature: -25 °C...55 °C.
Continuous operating temp., min: -50 °C.
Continuous operating temp., max: 120 °C.
Material: Wemid.
Color: Dark beige.
UL 94 flammability rating: V-0.
Standards: IEC 60947-7-1.
System specifications:
End cover plate required.
Number of potentials: 1.
Number of levels: 1.
Number of clamping points per level: 2.
Number of potentials per tier: 1.
No Levels cross-connected internally.
No PE connection.
Rail: TS 35.
No N-function.
No PE function.
No PEN function.
Disconnect terminals:
Without Cross-disconnect.
No Integral test socket.
Slitting: Pivoting.
Rating data:
Rated cross-section: 2.5 mm².
Rated voltage to adjoining terminal: 500 V.
Rated DC voltage: 500 V.
Rated current: 24 A.
Current at maximum wires: 24 A.
Volume resistance according to IEC 60947-7-x: 1.33 m Ω.
Rated impulse withstand voltage to adjacent terminal: 6 kV.
Power loss in accordance with IEC 60947-7-x: 0.77 W.
Pollution severity: 3.
