DEK 5/8 MC NE WS
SKU: 1856740000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

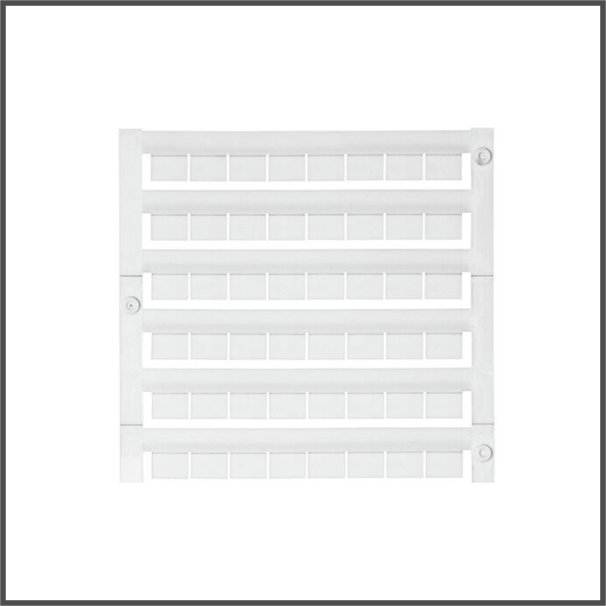

DEK 5/8 MC NE WS:
The Dekafix (DEK) marker is used to identify all conductors, plug-in connectors, and electronic sub-assemblies.
The system is suited for short number sequences and includes a large selection of ready-printed markers.
Strips allow for quick installation in just one step.
The printing is clear, with high contrast and available in several widths.
A large selection of ready-to-use markers.
strips that install quickly.
Markers for terminals that fit all Weidmüller cable connections.
Available in blank MultiCard or with normal printing.
For bespoke printing, please email us a file of our labelling program, M-Print PRO or M-Print PRO Online (without installation), with your labelling parameters.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Height: 5 mm.
Height (inches): 0.197 inch.
Width: 8 mm.
Width (inches): 0.315 inch.
Net weight: 0.15 g.
Temperatures:
Operating temperature range: -40...100 °C.
Environmental Product Compliance:
REACH SVHC: /.
General data:
Application/manufacturer: Weidmueller.
Colour: white.
compatible printer: PRINTJET CONNECT.
Halogen: No.
Material: Polyamide 66.
Material colour according to resistance code: 9.
Number of markers per combination: 1 MultiCard = Terminal marker.
Number of markers per packaging unit:
Form of supply: MultiCard.
Operating temperature range: -40...100 °C.
Operating temperature range, max.: 100 °C.
Operating temperature range, min.: -40 °C.
Orientation of print: horizontal and vertical.
Printed characters: neutral.
UL 94 flammability rating: V-2.
Width: 8 mm.
Connector markers:
Pitch in mm (P): 8 mm.
