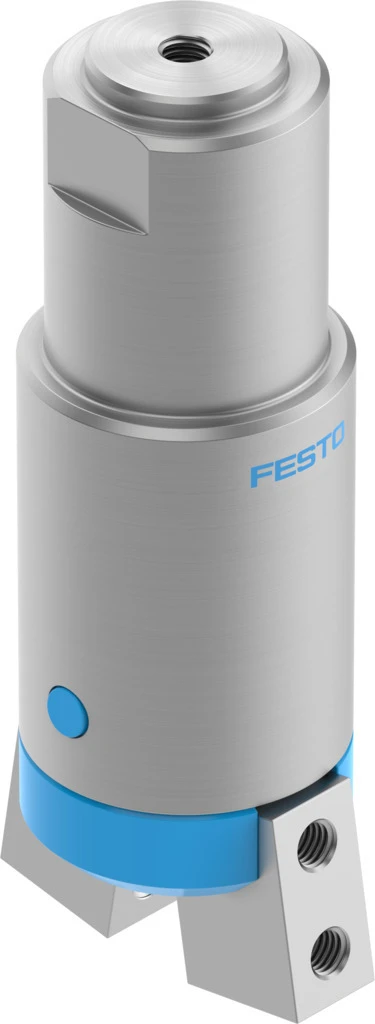

Angle gripper, HGWM-12-EO-G
SKU: 185701
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Angle gripper HGWM
• Size 12
• Max. angular gripper jaw backlash ax, ay 0.5 deg
• Max. gripper jaw backlash Sz 0.03 mm
• Max. opening angle 18.5 deg
• Repetition accuracy, gripper ≤0.02 mm
• Number of gripper jaws 2
• Mode of operation Single-acting, Open
• Gripper function Angle
• Design Wedge-shaped drive
• Position detection Without
• Max. force on gripper jaw Fz static 20 N
Buy currently uses Select Automation shop pricing and checkout.
Angle gripper HGWM
• The micro gripper for very tight installation spaces in sizes 8 and 12 and with a gripping torque of 11 ... 38 Ncm.
• Mounting either via clamping flange or male thread.
• Micro gripper: compact, handy design
• Versatile thanks to externally adaptable gripper fingers
• Single-acting gripper, optionally with open (NO) or closed (NC) gripper jaws
• Suitable for external and internal gripping
• Mounting options with clamping flange, with flange mounting, with Z-stroke compensation
