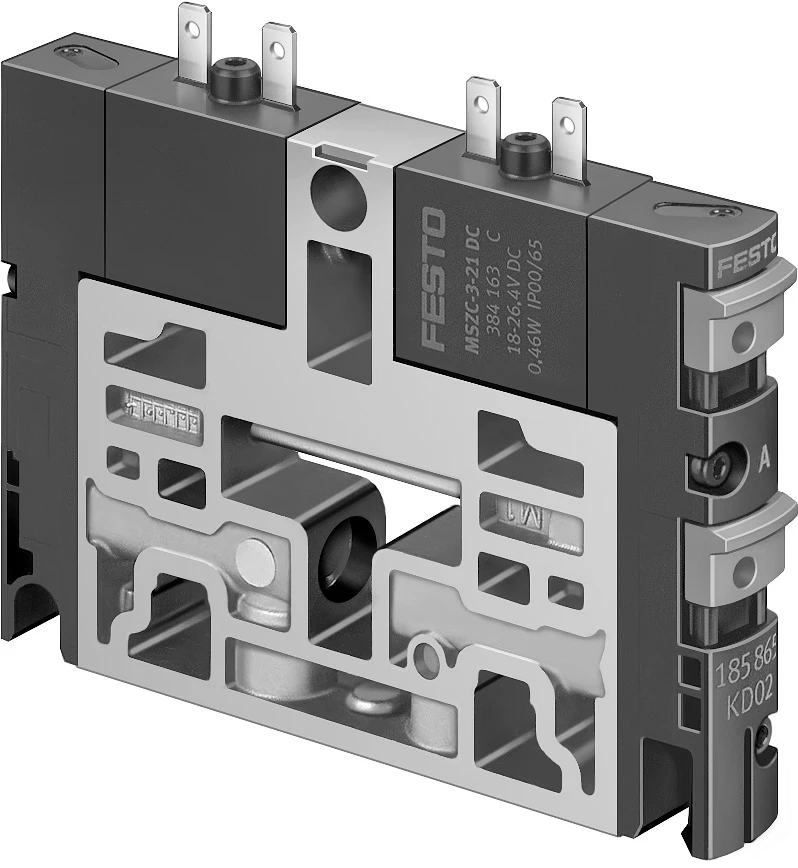

Vacuum generator, CPV14-M1H-VI95-2GLS-1/8

Specifications • Valve terminal CPV, Compact Performance • Accessories, Vacuum generator • Nominal size, Laval nozzle 0.95 mm • Mounting position optional • Ejector characteristic High vacuum • Symbol 00991561 • Operating pressure 2 bar ... 10 bar • Max. vacuum 85 % • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) • Corrosion resistance class CRC 1 - Low corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Media temperature 0 °C ... 50 °C • Ambient temperature 0 °C ... 50 °C
