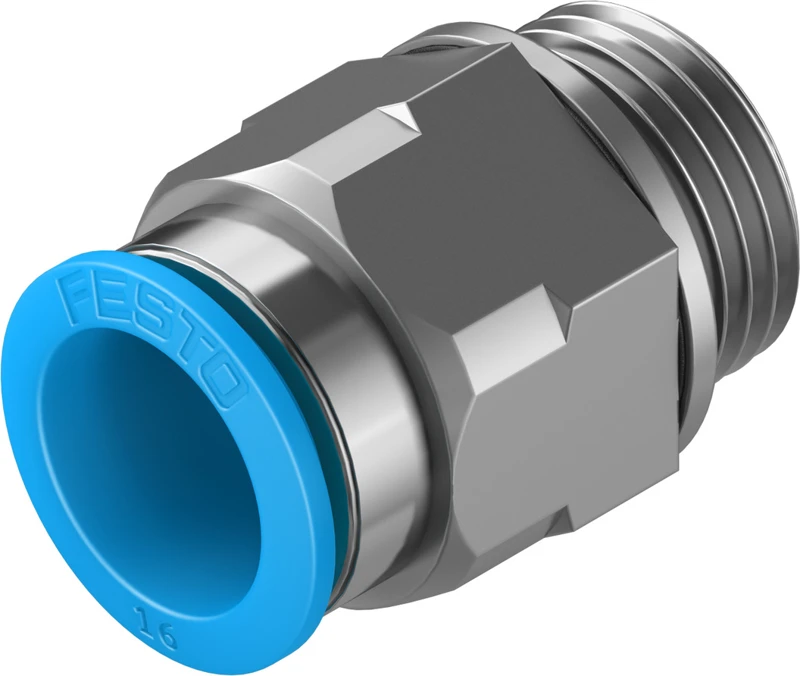

Push-in fitting, QS-G1/2-16
SKU: 186105
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Valve terminals VTSA
• Accessories
• Push-in fitting with connecting thread, Tubing O.D. 16 mm Plastic releasing ring
• Pneumatic connection, port 1 Male thread G1/2
• Pneumatic connection, port 2 For tubing outside diameter of 16 mm
• Temperature-dependent operating pressure -0.95 bar - 14 bar
• Ambient temperature -10 °C - 80 °C
• Nominal size 13 mm
Buy currently uses Select Automation shop pricing and checkout.
Push-in fitting QS
• Standard series
• Wide range of variants: wide selection for maximum flexibility in standard applications
• PBT and nickel-plated brass
• Operating media compressed air, vacuum, water. Water as per the manufacturer's declaration, see www.festo.com/certificates/QS
• Straight shape, L-shape, T-shape, at 45° angle, X-shape, Y-shape, push-in bulkhead connector
