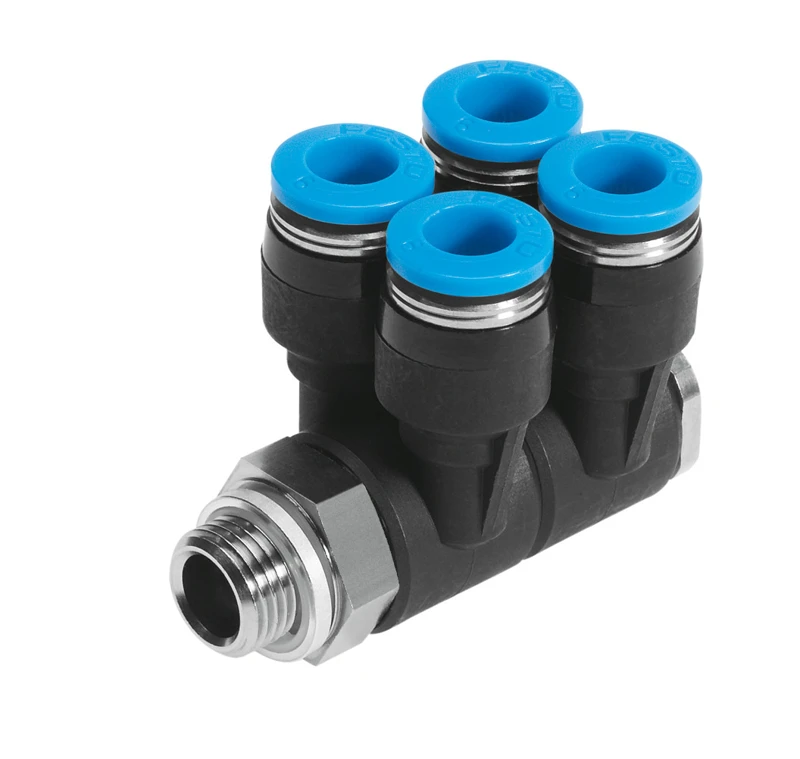

Multiple distributor, QSLV4-G3/8-8
SKU: 186248
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Multiple distributor QSLV4
• Size Standard
• Nominal size 4.1 mm
• Type of seal on screwed plug Sealing ring
• Mounting position optional
• Design Push-pull principle
• Size of pack 1
• Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa
• Operating pressure complete temperature range -0.95 bar ... 6 bar
• Operating pressure complete temperature range -13.775 psi ... 87 psi
• Number of outputs 4
• Number of supply lines 1
• Pneumatic connection, port 1 Male thread G3/8
• Pneumatic connection, port 2 For tubing outside diameter of 8 mm
Buy currently uses Select Automation shop pricing and checkout.
Multiple distributor QSLV, QST, QSQ
• Rotatable compressed air branch in the riser pipe principle.
• With single outlets.
• PBT and nickel-plated brass
• Rotatable 360°
• Reducing design
• Operating media: compressed air, vacuum, (water)
• Straight design, L-shaped, T-shaped
